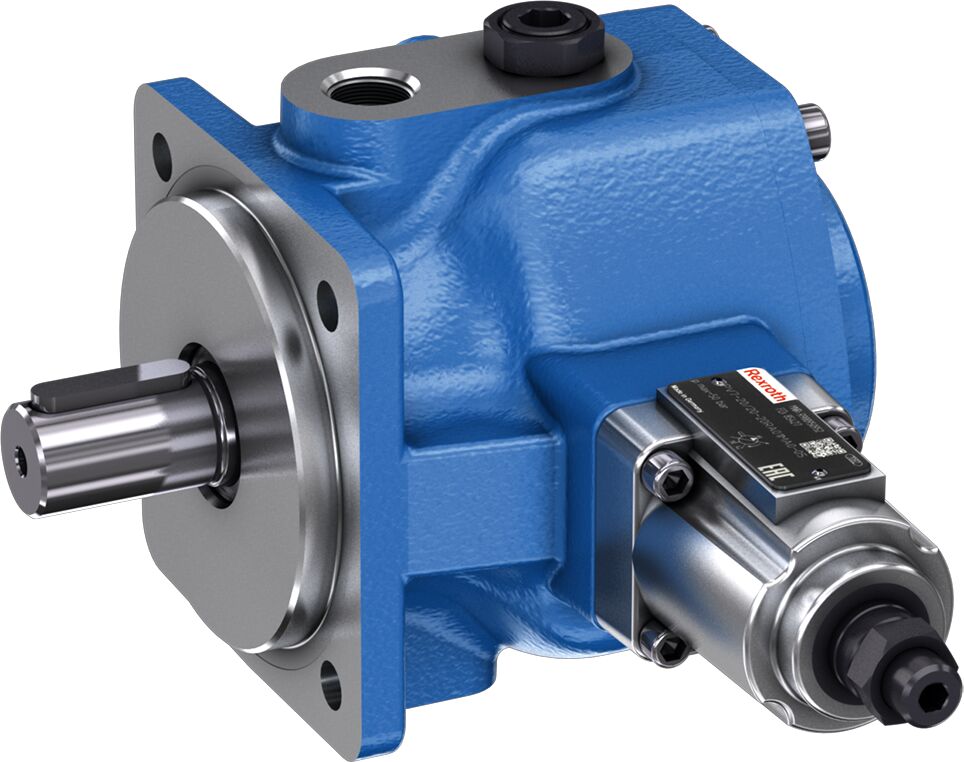

VANE PUMP PV7-1X/06-10RA01MA3-05
R900551015
Out of stock
Information
| Direction of rotation | clockwise rotation |
| Displacement type | variable |
| Fastening | 4-hole mounting flange 80B4HW according to ISO 3019-2 |
| Hydraulic fluid | HLP;HLPD;HVLP;HVLPD |
| Iteration | 2 |
| Long Description | High reliability. Low noise and low pulsation level. High efficiency. Quick response behavior of the controller. |
| Max. flow | 14.5 l/min |
| Max. pressure | 100 bar |
| Shaft end | Cylindrical Ø 20 mm with fitting key, ISO 3019-2 |
| Short Description | VANE PUMP PV7-1X/06-10RA01MA3-05 |
| Size (#1) | 10 cm³ |
| Through-drive | without |
| Weight | 5.32 kg |
