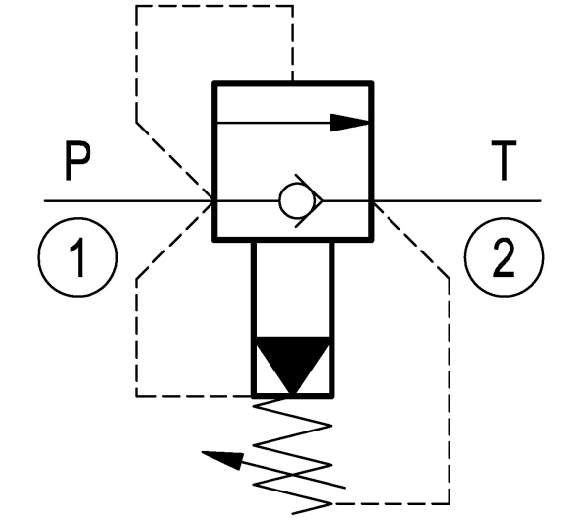

SCREW-IN CARTRIDGE VALVE VMR2.240.NG.010-VMR-22-FC-N-420-FKM
R930052892
Out of stock
Information
| Adjustable pressure range | 100-420 bar |
| Cavity | FC M28x1 |
| Direct - Pilot | Pilot operated |
| Hydraulic fluid | HL;HLP |
| Iteration | 5 |
| Long Description | Maximum operating pressure 420 bar (6000 psi)Maximum flow 240 l/min (63 gpm)Cavity FC M28x1Screw-in cartridge valve |
| Max. flow | 240 l/min |
| Max. pressure | 420 bar |
| Nominal flow | 240 l/min |
| Normal position | Normally closed |
| Ports number | 2 |
| Product family classification | Pressure relief pilot operated poppet type and anti-cavitation valve |
| Product family type | VMR |
| Sealing material | FKM |
| Short Description | SCREW-IN CARTRIDGE VALVE VMR2.240.NG.010-VMR-22-FC-N-420-FKM |
| Spool Poppet | Poppet type |
| Type of connection | Screw-in cartridge valve |
| Weight | 0.245 kg |
