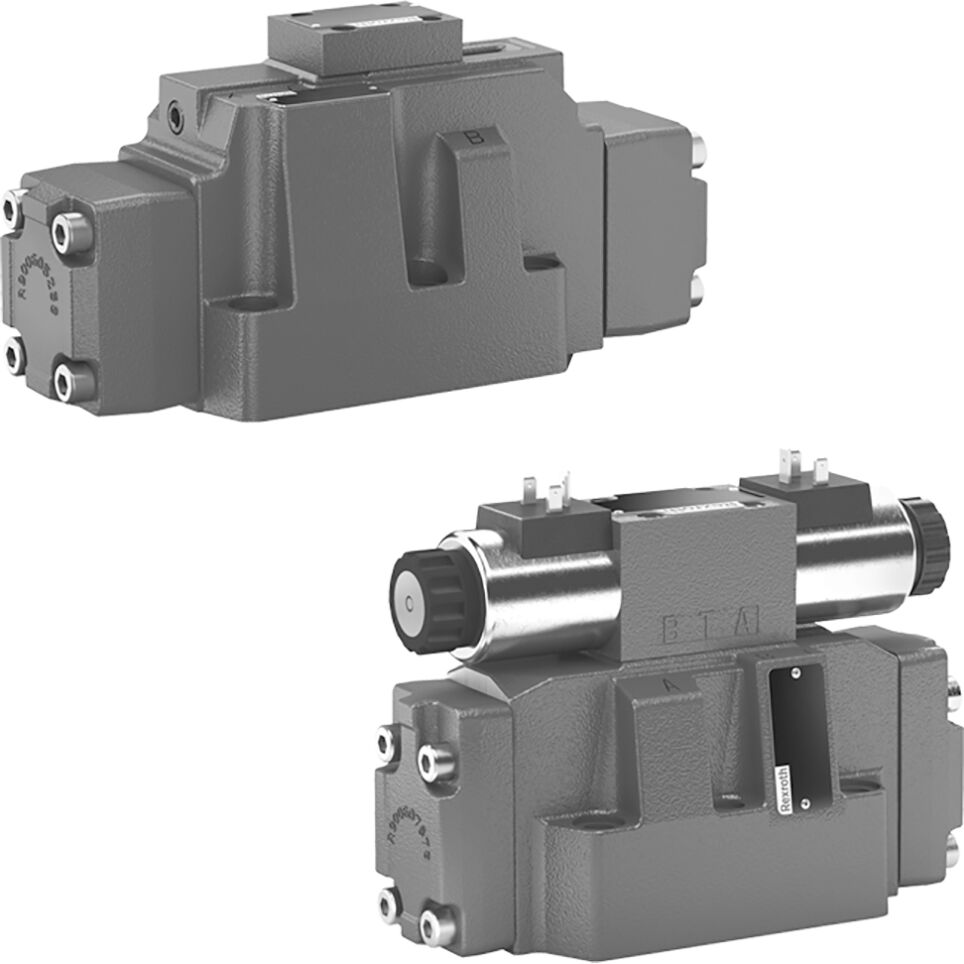

DIRECTIONAL SPOOL VALVE 4WH32HC6X/
R900328633
Out of stock
Information
| Connection diagram | ISO 4401-10-09-0-05 |
| Controls | Solenoid-actuated |
| Hydraulic fluid | HL;HLP;HLPD;HVLP;HVLPD;HFC |
| Iteration | 0 |
| Long Description | Industrial hydraulic valve in a high performance range. Reliable switching of the oil flow direction according to hydraulic symbol.External pilot oil supply, external pilot oil returnPilot-operatedSpool valve |
| Max. flow (#1) | 1100 l/min |
| Max. pressure | 280 bar |
| Number of ports | 4 |
| Number of switching positions | 2 |
| Short Description | DIRECTIONAL SPOOL VALVE 4WH32HC6X/ |
| Size | 32 |
| Spool symbol | Symbol C |
| Type of actuation | with hydraulic actuation |
| Type of connection | Subplate mounting |
| Weight | 32.6 kg |
