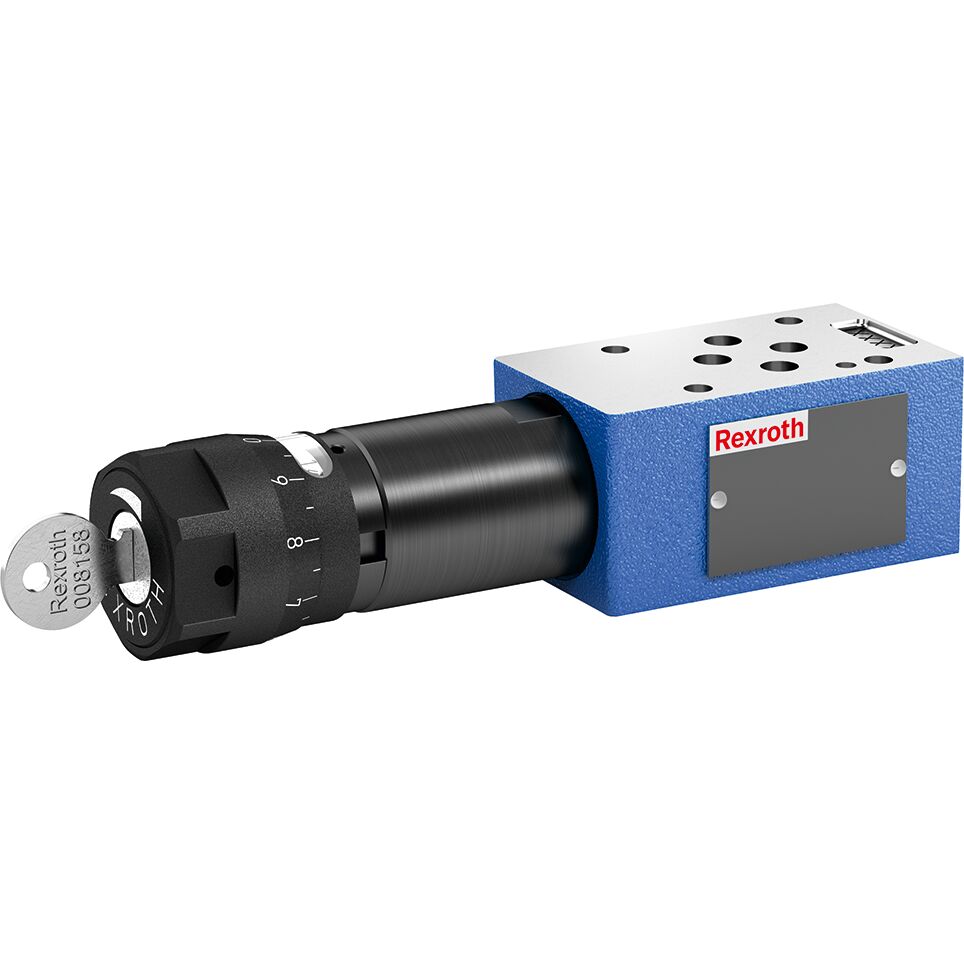

PRESSURE RELIEF VALVE -Z ZDB6DP2-2X/350MPV
391701
På lager
Information
| Connection diagram | ISO 4401-03-02-0-05 |
| Hydraulic fluid | HL;HLP;HLPD;HVLP;HVLPD;HETG;HEES;HEPG;HFDU;HFDR |
| Iteration | 6 |
| Long Description | Industrial hydraulic valve in a high performance range. Reliable pressure relief to setting value.Direct actuated |
| Max. flow (#3) | 60 l/min |
| Max. pressure | 350 bar |
| Number of ports | 4 |
| Number of switching positions | 2 |
| Short Description | PRESSURE RELIEF VALVE -Z ZDB6DP2-2X/350MPV |
| Size | 6 |
| Spool symbol | P → T |
| Type of actuation (#1) | with mechanical actuation |
| Type of connection | Interim assembly |
| Weight | 1.23 kg |
