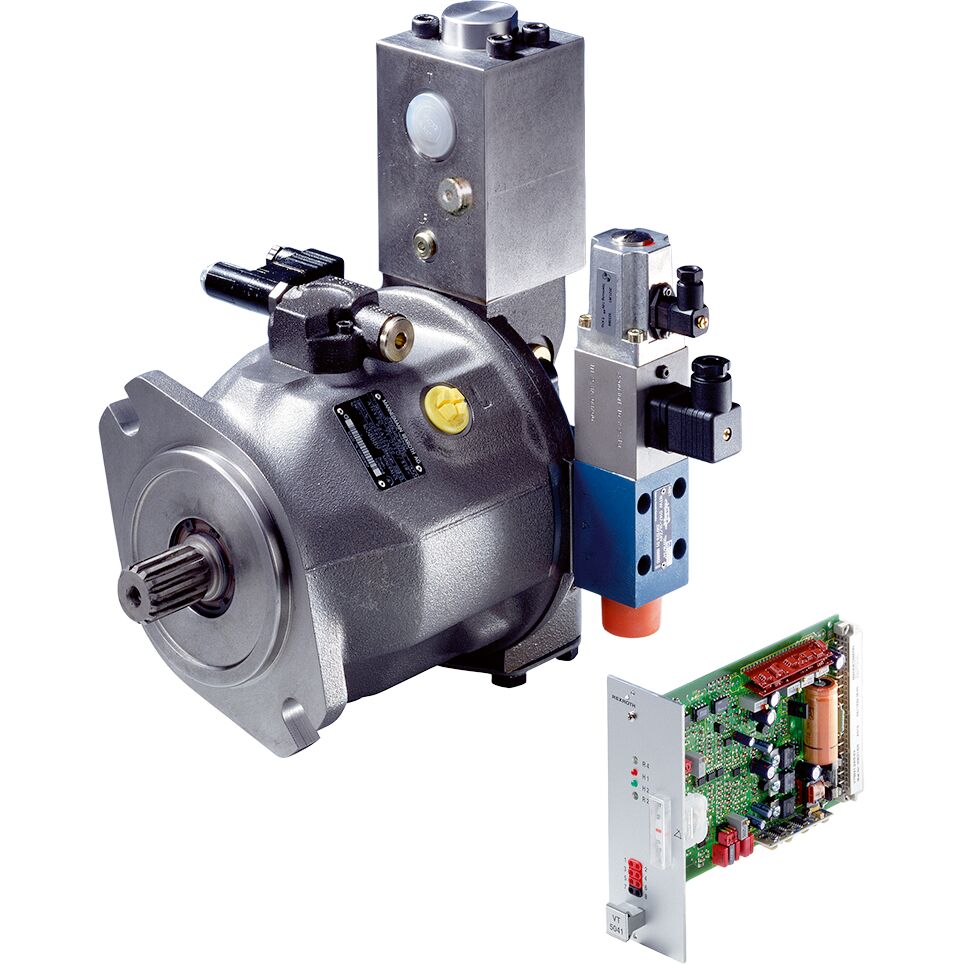

pump control system SYDFE1-2X/028R-PPA12N00-0000-A0X0XX2
R900721315
Out of stock
Information
| Connectivity | Analog |
| Direction of rotation | clockwise rotation |
| Displacement type | variable |
| Electrical connection description | Valve connector, valve position transducer connector, SWA connector |
| Fastening | ISO 2-hole |
| Hydraulic fluid | HLP |
| Iteration | 3 |
| Long Description | Pump system, maximum operating pressure 280 bar, size 28, functionality: Swivel angle, pressure control, master/slaveCommunication: analog28 cm³Own supplyComponent series 2XNominal pressure 280 barPreload valve 250 bar |
| Max. flow | 84 l/min |
| Max. pressure | 280 bar |
| Shaft end | Fitting key shaft |
| Short Description | pump control system SYDFE1-2X/028R-PPA12N00-0000-A0X0XX2 |
| Size (#1) | 28 cm³ |
| Supply voltage | 24 VDC |
| Through-drive | without |
| Weight | 23.8 kg |
