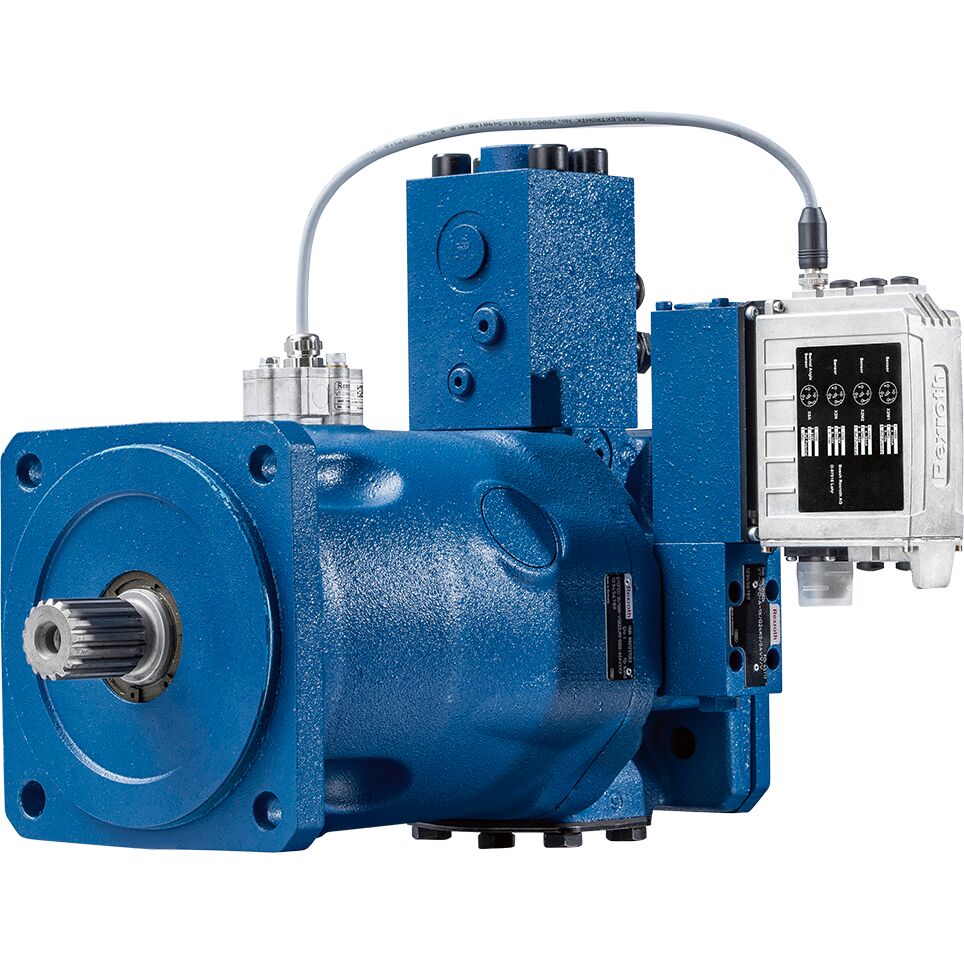

PUMP CONTROL SYSTEM SYDFED-3X/071R-VRB22U00-0000-A0ANVXX
R901435669
Out of stock
Information
| Connectivity | Bus connection / analog |
| Controls | Integrated electronics |
| Direction of rotation (#2) | clockwise rotation |
| Displacement type | variable |
| Electrical connection description | Connector 12-pole (11 + PE) according to EN 175201-804 |
| Fastening (#1) | ISO 4-hole |
| Hydraulic fluid | HLP |
| Iteration | 6 |
| Long Description | Pump system, maximum operating pressure 280 bar, size 71, functionality: Swivel angle, pressure control, master/slave71 cm³Own supplyComponent series 3XCommunication: analog/digitalNominal pressure 280 barPump A10VSO BR32 with digital OBE |
| Max. flow (#3) | 128 l/min |
| Max. pressure | 280 bar |
| Pump controls | variable |
| Shaft end | Geared shaft (R) |
| Short Description | PUMP CONTROL SYSTEM SYDFED-3X/071R-VRB22U00-0000-A0ANVXX |
| Size (#1) | 71 cm³ |
| Supply voltage | 24 VDC |
| Through-drive | with |
| Weight | 49 kg |
