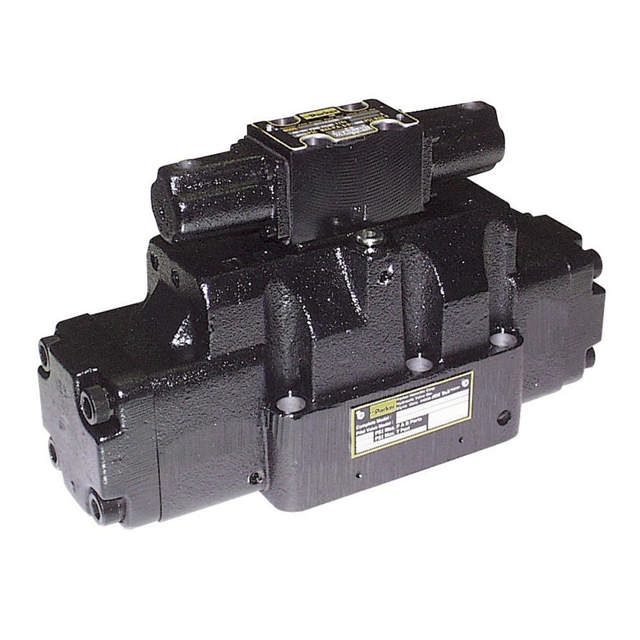

Air Operated Directional Control Valve - D81VA Series
D81VA012E1N8
Ikke på lager
Information
| Afdeling | Hydraulic Valve Division |
| Aktiveringstype | Hydraulic Pressure |
| Body materiale | Grey Iron |
| Maks. driftstemperatur | +140 °F |
| Maks. driftstryk | 345 bar |
| Maks. driftstryk | 5731 PSI/345 Bar |
| Maks. flowhastighed | 80 Gal/min |
| Maks. flowhastighed | 80 GPM |
| Mindste driftstemperatur | -4 °F |
| Monteringstype | Subplate |
| Monteringstype | Subplate |
| Pakningsmateriale | Nitrile |
| Placering af pilotindgang/dræn | Int. Pilot/Ext. Drain |
| Spolekode | 4-way, 3 position; All Ports Open, Metered |
| Spoleposition | Single Operator, 2 position, spring centered. P to B and A to T in shifted position |
| Størrelse | NFPA D08, CETOP 8, DIN NG25 |
| Størrelse | NFPA D08, CETOP 8, DIN NG756 |
| Valg | Stroke Adj. 'B' End |
| Ventiltype | Air Operated Directional Control Valve |
| Vægt | 19.9 kg |
Filer
| Downloads | Installation Guide -D81 Series.pdf |
| Downloads | Air Operated Directional Control Valve Catalog - D81VA Series.pdf |
