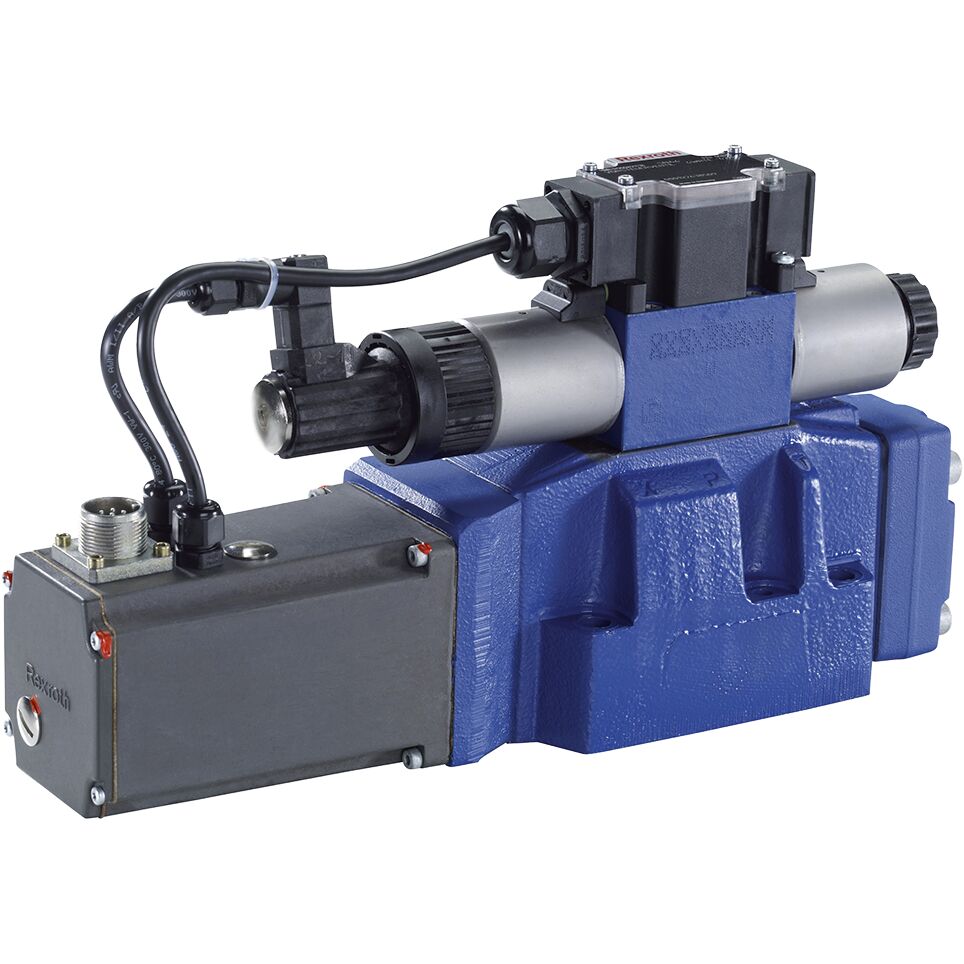

hy prop directional valve 4WRTE10V50P-4X/6EG24TK31/F1V
R900249163
Ikke på lager
Information
| Connection diagram | ISO 4401-05-05-0-05 |
| Connectivity | Analog, command value 4 … 20 mA |
| Controls | Integrated electronics |
| Electrical connection description | Connector 7-pole (6 + PE) according to EN 175201-804 |
| Electrical connector | Connector 7-pole (6 + PE) |
| Hydraulic fluid | HL;HLP;HLPD;HVLP;HVLPD;HETG;HEES;HEPG;HFDU;HFDR |
| Iteration | 0 |
| Long Description | Industrial hydraulic valve in the high performance range; reliable control of the oil flow direction according to the hydraulic symbol; high accuracy through internal piston position feedbackExternal pilot oil supply, internal pilot oil returnCharacteristic curve linear with fine control rangePilot-operatedSpool valve |
| Max. flow (#1) | 170 l/min |
| Max. pressure | 350 bar |
| Nominal flow | 50 l/min |
| Number of ports | 4 |
| Number of switching positions | 3 |
| Short Description | hy prop directional valve 4WRTE10V50P-4X/6EG24TK31/F1V |
| Size | 10 |
| Spool symbol | Symbol V |
| Supply voltage | 24 VDC |
| Type of actuation | Electrical with integrated electronics |
| Type of connection | Subplate mounting |
| Weight | 9.5 kg |
