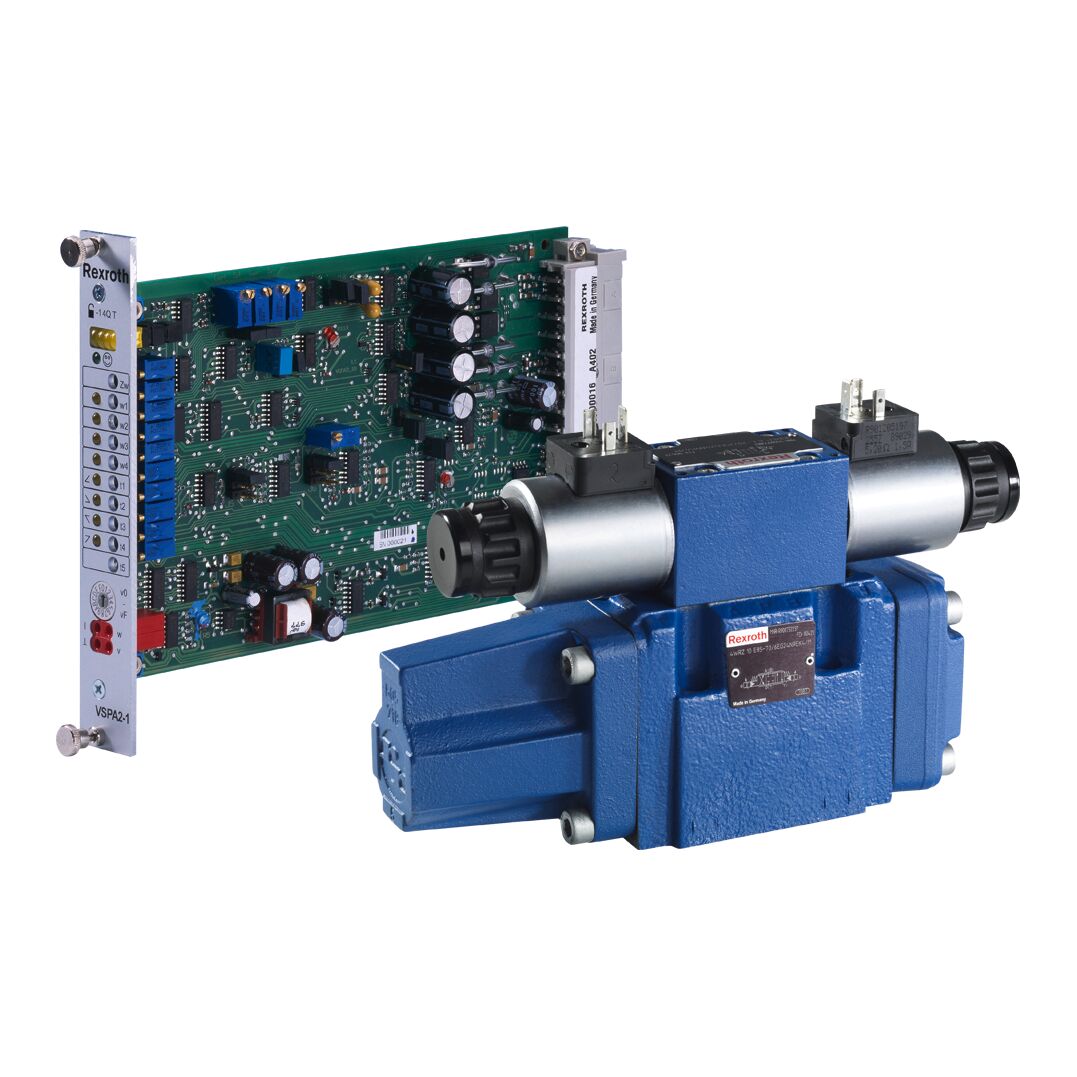

PROPORTIONAL DIRECTIONAL VALVE 4WRZ16W6-100-7X/6EG24N9K4/D3M
R900244172
Ikke på lager
Information
| Connection diagram | ISO 4401-07-07-0-05 |
| Electrical connection description | Connector 3-pole (2 + PE) according to EN 175301-803 |
| Electrical connector | Connector 3-pole (2 + PE) |
| Hydraulic fluid | HL;HLP;HLPD;HVLP;HVLPD;HFC |
| Iteration | 0 |
| Long Description | Industrial hydraulic valve in a high performance range, reliable control of oil flow direction according to hydraulic symbolWith pressure reducing valveExternal pilot oil supply, external pilot oil returnPilot-operatedSpool valveWith concealed auxiliary actuation |
| Max. flow (#1) | 460 l/min |
| Max. pressure | 350 bar |
| Nominal flow | 100 l/min |
| Number of ports | 4 |
| Number of switching positions | 3 |
| Short Description | PROPORTIONAL DIRECTIONAL VALVE 4WRZ16W6-100-7X/6EG24N9K4/D3M |
| Size | 16 |
| Spool symbol | Symbol W6 |
| Supply voltage | 24 VDC |
| Type of actuation | Electrical with external electronics |
| Type of connection | Subplate mounting |
| Weight | 11.94 kg |
