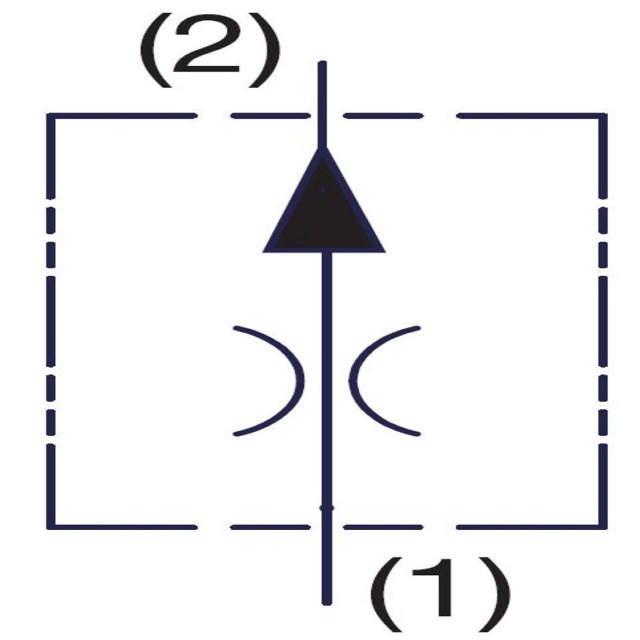

PRESSURE COMP FLOW .1 GPM
FR032010
Udsolgt
Information
| Afdeling | Hydraulic Cartridge Systems Division |
| Aktiveringstype | Pressure Compensated |
| Betjeningstype | Automatic |
| Body materiale | N/A |
| Displayområde for flowhastighed | N/A |
| Displayområde for flowhastighed | N/A Gal/min |
| Driftstemperatur | -15 to +400 �F |
| Filters effektivitetsklassificering | ISO 4406 18/16/13, SAE Class 4 |
| Flowhastighed | 1.13 L/min |
| Flowhastighed - nøjagtighed | 15% |
| For væsketype | Mineral-based or synthetic hydraulic fluids |
| Forbindelsestype | N/A |
| Form størrelse | ES10436 |
| Funktion | Flow Control |
| Indstilling for standardflowhastighed | 0.1 GAL/MIN, 0.38 L/MIN |
| Indstilling for standardflowhastighed | 0.1 Gal/min |
| Installationsmoment | 13 lb-ft |
| Justeringsmekanisme | Tamper Resistant |
| Justeringsmekanisme | Fixed |
| Konfiguration | Insert |
| Konfiguration | Insert |
| Maks. driftstemperatur | +400 �F |
| Maks. driftstryk | 345 bar |
| Maks. flowhastighed | 1.13 L/min |
| Maks. flowhastighed | 0.3 GAL/MIN, 1.13 L/MIN |
| Maksimal kinematisk viskositet | 45-2000 SSU (6 to 420 cSt) |
| Maksimalt indløbstryktrin | 345 bar |
| Mindste driftstemperatur | -26 �C |
| Pakningsmateriale | Fluorocarbon |
| Pakningsmateriale | Fluorocarbon |
| partId (right) | 3349829 |
| Tilslutningsstørrelse | N/A |
| Ventilmateriale | All parts steel. All operating parts hardened steel |
| Vægt | 0.045 lb |
