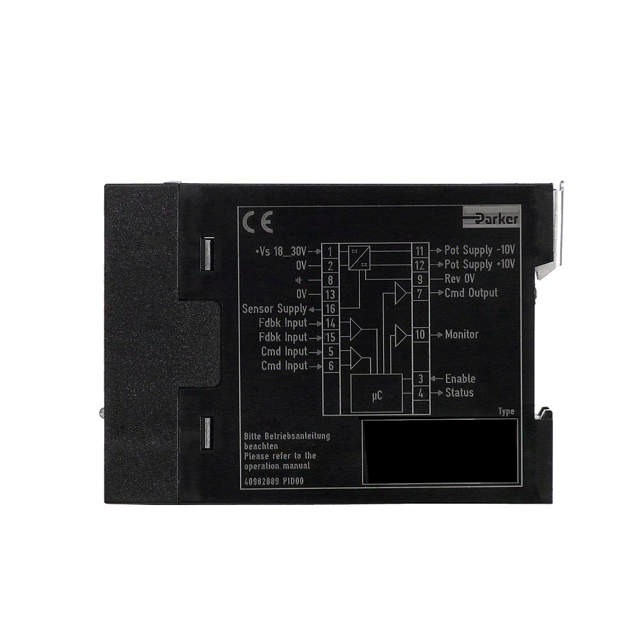

PID00A-401-19 AMPLIFIER UNIT
PID00A-401
Udsolgt
Information
| Afdeling | Industrial Systems Division Europe |
| Aktiveringstype | N/A |
| Body materiale | Polycarbonate |
| Driftstrøm | Max. 0.1 A |
| Elektrisk tilslutning | Screw terminals 0.2 … 2.5 MM2, disconnectable |
| For væsketype | N/A |
| Funktion | Closed loop control |
| Indgangsspænding | 18 - 30 VDC |
| Interface type | USB type-B |
| Kabellængde | 50 m |
| Kabeltype | 0.5 MM2 overall braid shield for sensor and signal (AWG20) |
| Maks. driftstemperatur | 60 °C |
| Maks. driftstryk | N/A |
| Maks. flowhastighed | N/A |
| Mindste driftstemperatur | -20 °C |
| Monteringsposition | Unrestricted |
| Monteringstype | Snap-on mounting on EN 50022 rail |
| Pakningsmateriale | N/A |
| Produktserie | Electronic module |
| Specifikationer overholdt | IP20 acc. EN 60529; V0 acc. UL 94; EMC EN 50081-2, EN 50082-2 |
| Teknologivalg | Linearization of valve behaviour |
| Trykreguleringsområde | N/A |
| Vægt | 0.16 kg |
