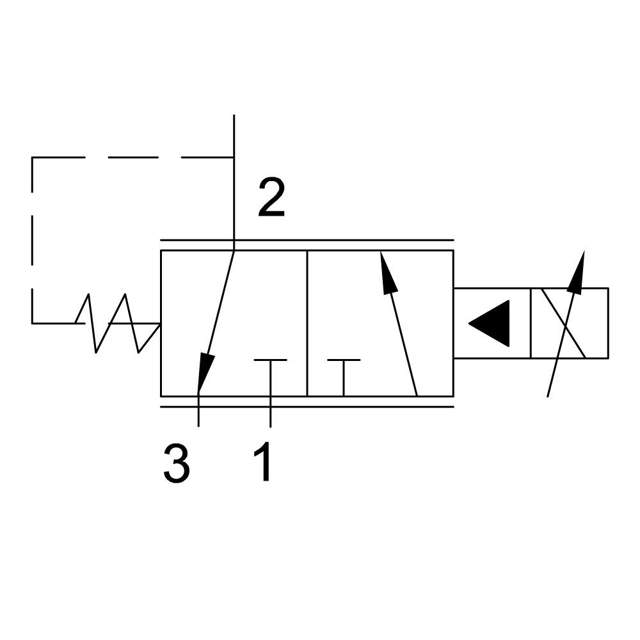

ADJ PROP PRESS REDUCER
EPR111C02
Udsolgt
Information
| Afdeling | Hydraulic Cartridge Systems Division |
| Aktiveringstype | Electrical |
| Betjeningstype | Solenoid operated |
| Body materiale | N/A |
| Bypassfunktionalitet | N/A |
| Bypassfunktionalitet | N/A |
| Driftstemperatur | -37 to +93 �C |
| Filters effektivitetsklassificering | ISO 4406 18/16/13, SAE Class 4 |
| Flowhastighed | 10 Gal/min |
| Flowretning | Inlet port 1, Reducing port 2, Tank port 3 |
| For væsketype | Mineral-based or synthetic hydraulic fluids |
| Form størrelse | C10-3L |
| Frekvens | 200-600 Hz |
| Funktion | Proportional Pressure Reducing |
| Hysterese | 4% |
| Installationsmoment | 37-41 lb-ft |
| Konfiguration | Pressure Reducing/Relieving |
| Konfiguration | Pressure Reducing/Relieving |
| Lækagehastighed | 492 @ 300 PSI (21 BAR), 946 @ 3000 PSI (210 BAR) cm3/min |
| Maks. driftstemperatur | +200 �F |
| Maks. driftstryk | 350 bar |
| Maks. flowhastighed | 37.5 L/min |
| Maks. flowhastighed | 10 GAL/MIN, 37.5 L/MIN |
| Maks. trykindstilling | N/A psi |
| Maksimal kinematisk viskositet | 45-2000 SSU (6 to 420 cSt) |
| Maksimalt beholdertryk | N/A psi |
| Maksimalt drænflowhastighed | N/A cm3/min |
| Maksimalt indløbstryktrin | 5000 PSI, 350 BAR |
| Maksimalt indløbstryktrin | 350 bar |
| Maksimalt regulerende flow | 200 PSI, 14 BAR |
| Maksimalt regulerende flow | 14 bar |
| Mindste driftstemperatur | -35 �F |
| Monteringstype | Screw in cartridge valve |
| Pakningsmateriale | D-Ring (Standard) |
| Pakningsmateriale | D-Ring (Standard) |
| partId (right) | 2436793 |
| Spolemøtriks tilspændingsmoment | 5-7 lb-ft |
| Spoletype | 1/2" Super Coil Low Watt (CCS) |
| Strøm | 0.9 at 12VDC, 0.45 at 24VDC A |
| Strømforbrug | 9 @ Max Reduced Pressure W |
| Svartid | N/A ms |
| Trådmaskesigte medfølger | N/A |
| Trådmaskesigte medfølger | N/A |
| Ventilmateriale | All parts steel. All operating parts hardened steel |
| Vægt | 0.59 kg |
