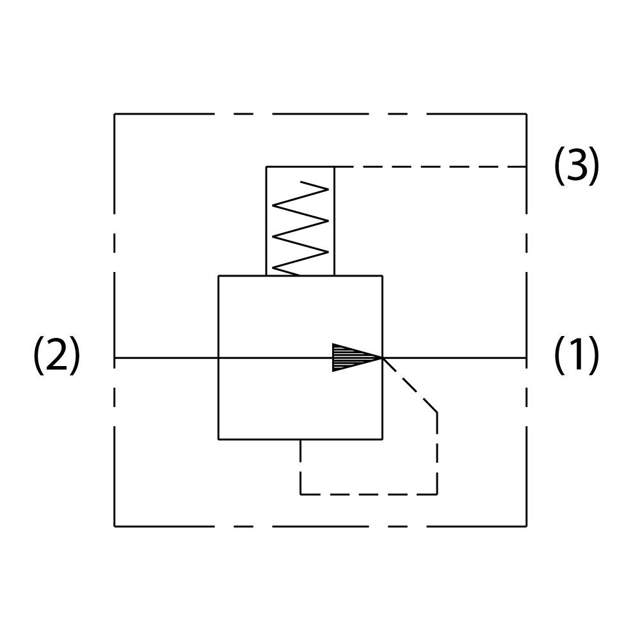

DIVERTER VALVE
R04H3-20.0N
Udsolgt
Information
| Afdeling | Hydraulic Cartridge Systems Division |
| Aktiveringstype | Vent to Close |
| Betjeningstype | Pilot Operated |
| Body materiale | N/A |
| Driftstemperatur | -34 to +121 �C |
| Dæmpningsåbning medfølger | No |
| Dæmpningsåbning medfølger | No |
| Filters effektivitetsklassificering | ISO 4406 18/16/13, SAE Class 4 |
| Flowhastighed | 9.2 @ 100 PSI (7 BAR) Nominal Gal/min |
| Flowretning | Side to Nose (2-1) |
| Flowretning | Side to Nose (2-1) |
| For væsketype | Mineral-based or synthetic hydraulic fluids |
| Form størrelse | C10-3S |
| Funktion | Logic Valve |
| Installationsmoment | 50 Nm |
| Konfiguration | Normally Open |
| Konfiguration | Normally Open |
| Lækagehastighed | 50 @ 1450 PSI (BAR) cm3/min |
| Maks. driftstemperatur | +250 �F |
| Maks. driftstryk | 6000 psi |
| Maks. flowhastighed | 45 Gal/min |
| Maks. flowhastighed | 15 GAL/MIN. 57 L/MIN |
| Maksimal kinematisk viskositet | 45-2000 SSU (6 to 420 cSt) |
| Maksimalt indløbstryktrin | 420 bar |
| Mindste driftstemperatur | -30 �F |
| Omkoblingstryk | 290 psi |
| Omkoblingstryk | 290 PSI, 20 BAR |
| Pakningsmateriale | Nitrile |
| Pakningsmateriale | Nitrile |
| partId (right) | 2357613 |
| Pilotplacering | Internal |
| Ventileret | External |
| Ventilmateriale | All parts steel. All operating parts hardened steel |
| Vægt | 0.3 lb |
