LOAD CONTROL VALVE
B-E2A060ZN
På lager
Information
| Afdeling | Hydraulic Cartridge Systems Division |
| Aktiveringstype | Pilot Operated |
| Body materiale | N/A |
| Driftstemperatur | -30� to +250� �F |
| Filters effektivitetsklassificering | ISO 4406:1999 Code 18/16/13 |
| Flowhastighed | 32 Gal/min |

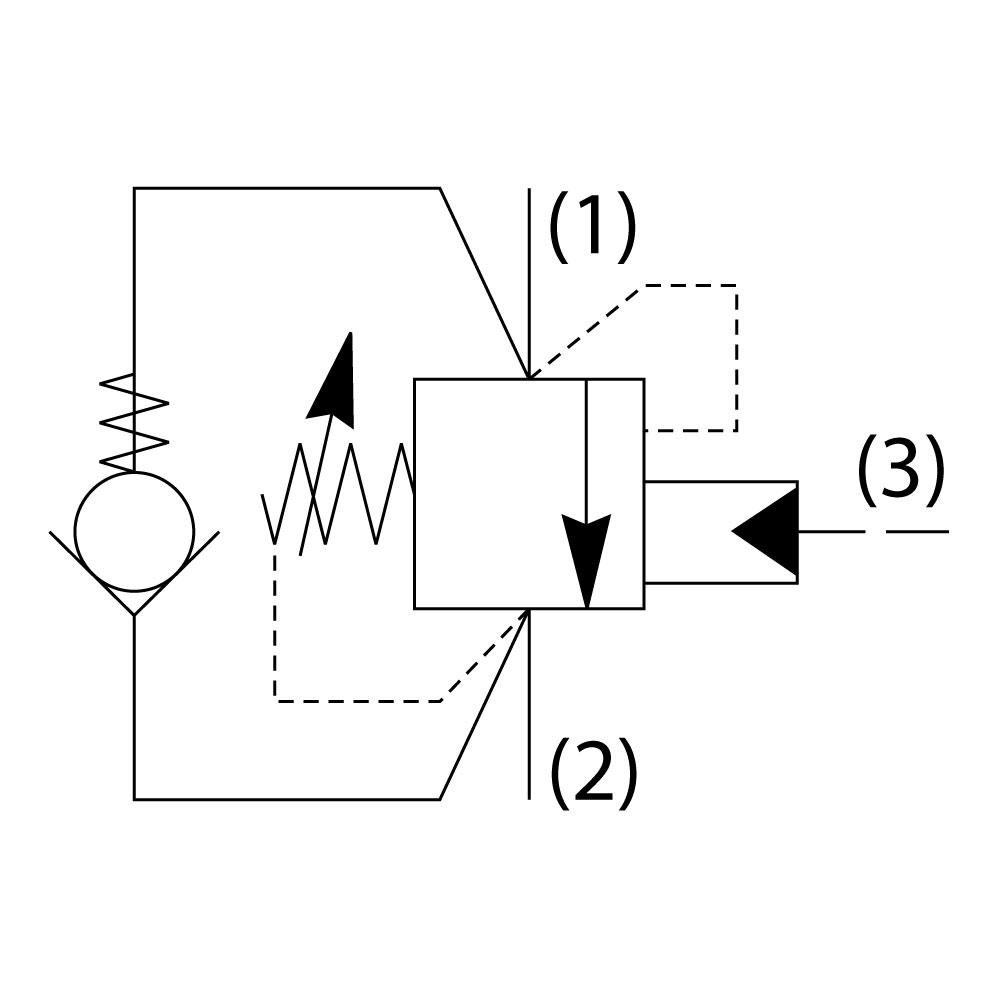

| Flowretning | Cylinder port 1, Valve port 2, Pilot port 3 |
| For væsketype | Mineral-based or synthetic hydraulic fluids |
| Form størrelse | 3C |
| Funktion | Counterbalance Valve |
| Holdetryk | 3120 PSI, 215 BAR |
| Holdetryk | 215 bar |
| Installationsmoment | 85 Nm |
| Justeringsmekanisme | Screw |
| Justeringsmekanisme | Screw |
| Lækagehastighed | 6 @ 1450 PSI (100 BAR) drops/min |
| Maks. driftstemperatur | +121 �C |
| Maks. driftstryk | 350 bar |
| Maks. flowhastighed | 120 L/min |
| Maks. flowhastighed | 32 GAL/MIN, 120 L/MIN |
| Maksimal kinematisk viskositet | Mineral-based or synthetic with lubricating properties at viscosities of 45-2000 SSU (6 to 420 cSt) cSt |
| Maksimalt indløbstryktrin | 5000 psi |
| Mindste driftstemperatur | -30 �F |
| Monteringstype | Threaded Cartridge Valve |
| Monteringstype | Threaded Cartridge Valve |
| Pakningsmateriale | Nitrile |
| Pakningsmateriale | Nitrile |
| partId (right) | 2358580 |
| Pilotplacering | External |
| Portgevindstørrelse | N/A |
| Portstørrelse | N/A |
| Portstørrelse | N/A |
| Styretryk | 8:1 |
| Styretryk | 8:1 |
| Trykreguleringsfølsomhed | 44 per turn bar |
| Trykreguleringsområde | 725-5000 PSI, 50-350 BAR |
| Trykreguleringsområde | 50-350 bar |
| Ventilmateriale | All parts steel. All operating parts hardened steel |
| Vægt | 1.19 lb |
