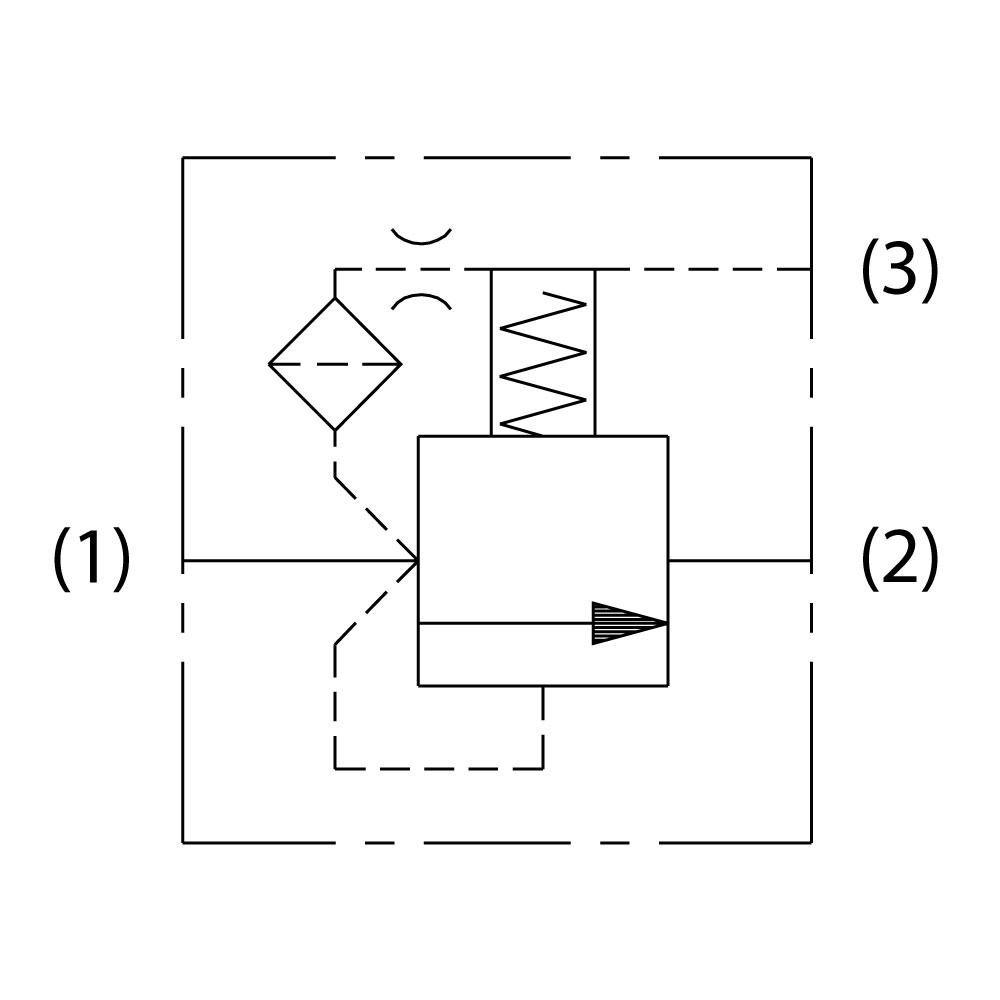

NC VENT TO OPEN SPOOL LOGIC EL
20SLC2-B-50V
Udsolgt
Information
| Afdeling | Hydraulic Cartridge Systems Division |
| Aktiveringstype | Vent to Open |
| Betjeningstype | Pilot Operated |
| Body materiale | N/A |
| Driftstemperatur | -15 to +400 �F |
| Dæmpningsåbning medfølger | Yes |
| Dæmpningsåbning medfølger | Yes |
| Filters effektivitetsklassificering | ISO 4406 18/16/13, SAE Class 4 |
| Flowhastighed | N/A L/min |
| Flowretning | Nose to Side (1-2) |
| Flowretning | Nose to Side (1-2) |
| For væsketype | Mineral-based or synthetic hydraulic fluids |
| Form størrelse | C20-3S |
| Funktion | Logic Valve |
| Installationsmoment | 113 Nm |
| Konfiguration | Normally Closed |
| Konfiguration | Normally Closed |
| Lækagehastighed | 82 @ 3500 PSI (240 BAR) cm3/min |
| Maks. driftstemperatur | +400 �F |
| Maks. driftstryk | 240 bar |
| Maks. flowhastighed | 80 Gal/min |
| Maks. flowhastighed | 80 GAL/MIN, 303 L/MIN |
| Maksimal kinematisk viskositet | 45-2000 SSU (6 to 420 cSt) |
| Maksimalt indløbstryktrin | 240 bar |
| Mindste driftstemperatur | -15 �F |
| Omkoblingstryk | 3.5 bar |
| Omkoblingstryk | 50 PSI, 3.5 BAR |
| Pakningsmateriale | Fluorocarbon |
| Pakningsmateriale | Fluorocarbon |
| partId (right) | 2357582 |
| Pilotplacering | Internal |
| Ventileret | External |
| Ventilmateriale | All parts steel. All operating parts hardened steel |
| Vægt | 0.81 kg |
