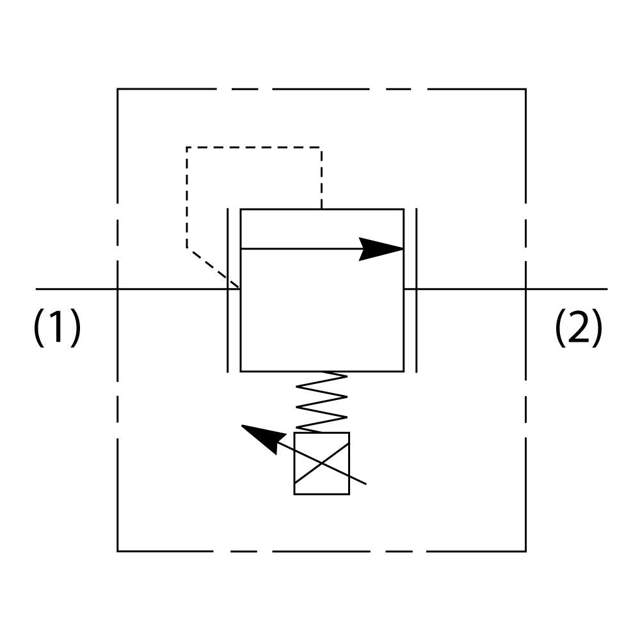

PROP PRESSURE REL. VALV 5000
AP02B2YR35AVL
Information
| Afdeling | Hydraulic Cartridge Systems Division |
| Aktiveringstype | Electrical |
| Betjeningstype | Solenoid operated |
| Body materiale | N/A |
| Driftstemperatur | -15 to +400 �F |
| Filters effektivitetsklassificering | ISO 4406 18/16/13, SAE Class 4 |
| Flowhastighed | 5.3 L/min |
| Flowhastighed | 0.35 GAL/MIN, 1.3 L/MIN |
| Flowretning | Nose to Side (1 - 2) |
| For væsketype | Mineral-based or synthetic hydraulic fluids |
| Form størrelse | C08-2 |
| Frekvens | 100-400 Hz |
| Funktion | Proportional Pressure Relief |
| Hysterese | < 10% |
| Installationsmoment | 22 lb-ft |
| Konfiguration | Decreasing Pressure/Increasing Current |
| Konfiguration | Decreasing Pressure/Increasing Current |
| Lækagehastighed | 10 @ 75% Crack Pressure drops/min |
| Maks. driftstemperatur | +250 �F |
| Maks. driftstryk | 5000 psi |
| Maks. flowhastighed | 1.4 Gal/min |
| Maks. trykaflastning | 5000 PSI, 350 BAR |
| Maks. trykaflastning | 350 bar |
| Maks. trykindstilling | N/A psi |
| Maksimal kinematisk viskositet | 45-2000 SSU (6 to 420 cSt) |
| Maksimalt indløbstryktrin | 350 bar |
| Mindste driftstemperatur | -34 �C |
| Monteringstype | Screw in cartridge valve |
| Pakningsmateriale | Fluorocarbon |
| Pakningsmateriale | Fluorocarbon |
| partId (right) | 2395342 |
| Spolemøtriks tilspændingsmoment | Finger Tight Nm |
| Spoletype | 5/8" Super Coil High Watt (CAP) |
| Sprængningstryk | 5 psi |
| Strømforbrug | 28 W |
| Trykreguleringsområde | N/A |
| Ventilmateriale | All parts steel. All operating parts hardened steel |
| Vægt | 0.19 lb |
