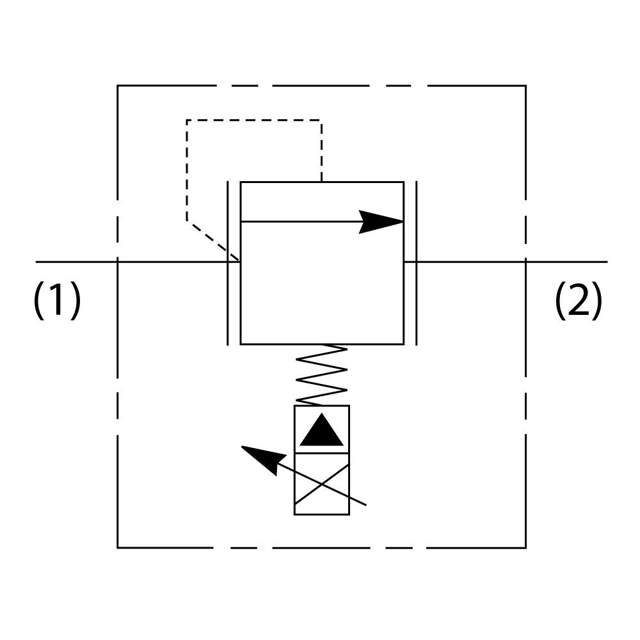

PROPORTIONAL RELIEF C10 25GPM
AP04G2YR10CV
Information
| Afdeling | Hydraulic Cartridge Systems Division |
| Aktiveringstype | Electrical |
| Betjeningstype | Solenoid operated |
| Body materiale | N/A |
| Driftstemperatur | -15 to +400 �F |
| Filters effektivitetsklassificering | ISO 4406 18/16/13, SAE Class 4 |
| Flowhastighed | 25 Gal/min |
| Flowhastighed | 25 GAL/MIN, 95 L/MIN |
| Flowretning | Nose to Side (1 - 2) |
| For væsketype | Mineral-based or synthetic hydraulic fluids |
| Form størrelse | C10-2 |
| Frekvens | 100-400 Hz |
| Funktion | Proportional Pressure Relief |
| Hysterese | < 7% |
| Installationsmoment | 34 Nm |
| Konfiguration | Decreasing Pressure/Increasing Current |
| Konfiguration | Decreasing Pressure/Increasing Current |
| Lækagehastighed | 5 for every 100 PSI of Setting cm3/min |
| Maks. driftstemperatur | +400 �F |
| Maks. driftstryk | 103 bar |
| Maks. flowhastighed | 25 Gal/min |
| Maks. trykaflastning | 1000 PSI, 70 BAR |
| Maks. trykaflastning | 103 bar |
| Maks. trykindstilling | N/A psi |
| Maksimal kinematisk viskositet | 45-2000 SSU (6 to 420 cSt) |
| Maksimalt indløbstryktrin | 350 bar |
| Mindste driftstemperatur | -26 �C |
| Monteringstype | Screw in cartridge valve |
| Pakningsmateriale | Fluorocarbon |
| Pakningsmateriale | Fluorocarbon |
| partId (right) | 2395344 |
| Spolemøtriks tilspændingsmoment | 3 lb-ft |
| Spoletype | 1/2" Super Coil High Watt (CCP) |
| Sprængningstryk | N/A psi |
| Strømforbrug | 19 W |
| Trykreguleringsområde | N/A |
| Ventilmateriale | All parts steel. All operating parts hardened steel |
| Vægt | 0.3 lb |
