SCREW-IN CARTRIDGE VALVE OD150118A000000-VEI-016-NC-08A-A-01-0000
4010000
På lager
Information
| Cavity | CA-08A-2N |
| Coil | D36 |
| Coil integrated | To be ordered separately |
| Direct - Pilot | Pilot operated |
| Hydraulic fluid | HL;HLP |
| Iteration | 5 |
| Long Description | Maximum flow 40 l/min (11 gpm)Cavity CA-08A-2NScrew-in cartridge valveMaximum operating pressure 350 bar (5000 psi) |
| Max. flow | 40 l/min |
| Max. pressure | 350 bar |
| Nominal flow | 40 l/min |
| Normal position | Normally closed |
| Ports number | 2 |
| Positions | 2 |

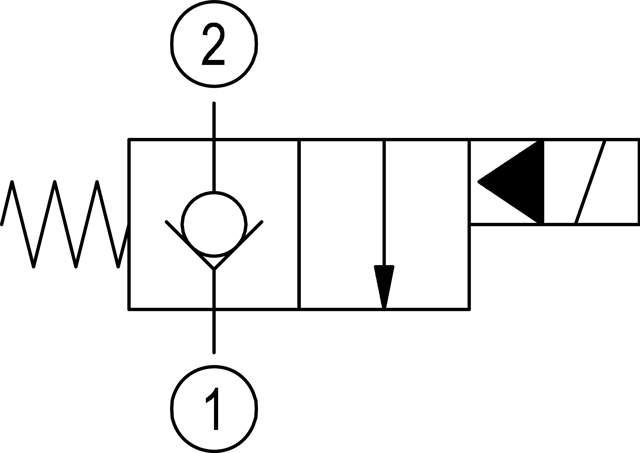

| Product family classification | Solenoid operated valves pilot operated poppet type 2-way |
| Product family type | VEI |
| Sealing material | NBR |
| Short Description | SCREW-IN CARTRIDGE VALVE OD150118A000000-VEI-016-NC-08A-A-01-0000 |
| Spool Poppet | Poppet type |
| Type of actuation | Solenoid-actuated on/off |
| Type of connection | Screw-in cartridge valve |
| Weight | 0.153 kg |
