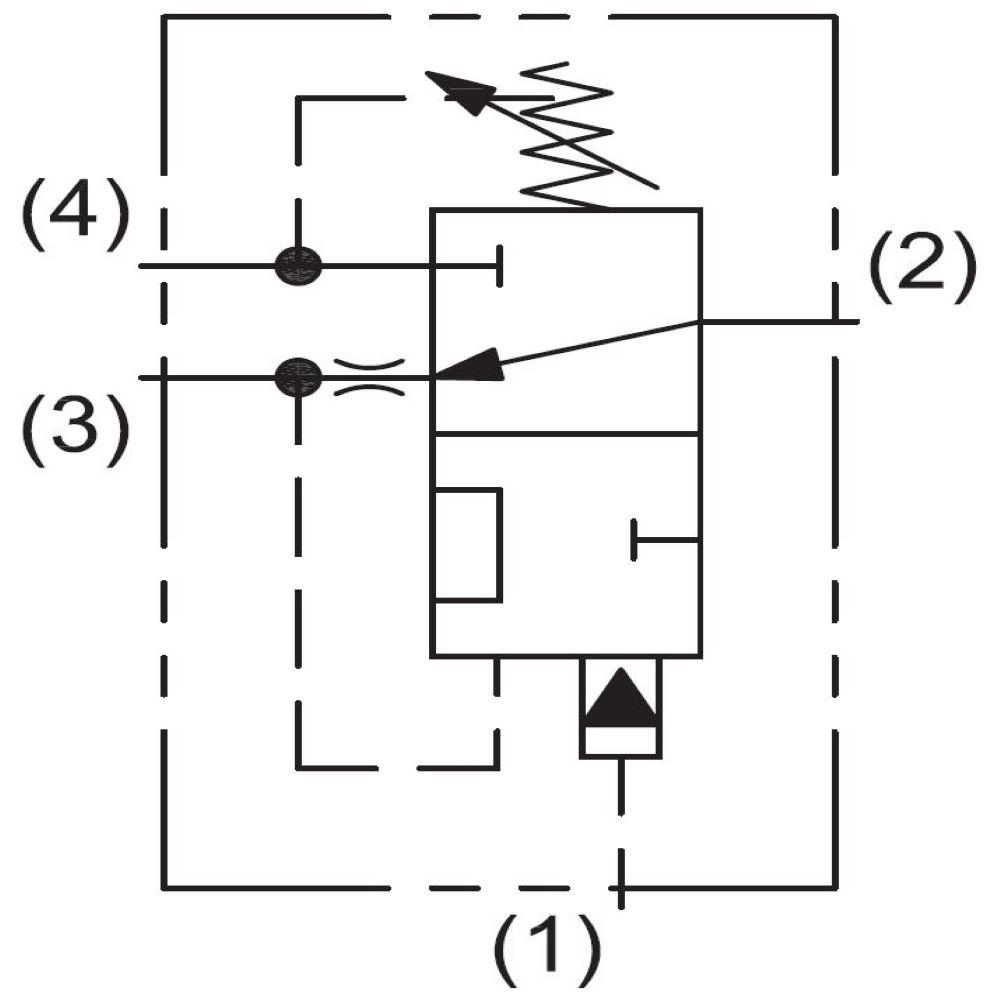

UNLOADER VALVE
RU104S36B
Udsolgt
Information
| Afdeling | Hydraulic Cartridge Systems Division |
| Aktiveringstype | Pressure Sensing |
| Body materiale | N/A |
| Driftstemperatur | -37 to +93 �C |
| Filters effektivitetsklassificering | ISO 4406 18/16/13, SAE Class 4 |
| Flowhastighed | 1 L/min |
| For væsketype | Mineral-based or synthetic hydraulic fluids |
| Form størrelse | C10-4 |
| Funktion | Unloading Relief Valve |
| Installationsmoment | 37-41 lb-ft |
| Justeringsmekanisme | Screw |
| Justeringsmekanisme | Screw |
| Lækagehastighed | 48 @ 3000 PSI (250 BAR) cm3/min |
| Maks. driftstemperatur | +93 �C |
| Maks. driftstryk | 3600 psi |
| Maks. flowhastighed | 0.25 Gal/min |
| Maks. flowhastighed | 0.25 GAL/MIN, 1 L/MIN |
| Maks. trykindstilling | 3600 psi |
| Maksimal kinematisk viskositet | 45-2000 SSU (6 to 420 cSt) |
| Maksimalt beholdertryk | 3000 psi |
| Maksimalt indløbstryktrin | 3600 psi |
| Mindste driftstemperatur | -35 �F |
| Pakningsmateriale | D-Ring (Standard) |
| Pakningsmateriale | D-Ring (Standard) |
| partId (right) | 3530726 |
| Standard trykindstilling | 184.4 bar |
| Trykreguleringsområde | 1750-3600 PSI, 120.7-250 BAR |
| Trykreguleringsområde | 1750-3600 psi |
| Ventilmateriale | All parts steel. All operating parts hardened steel |
| Vægt | 1 kg |
