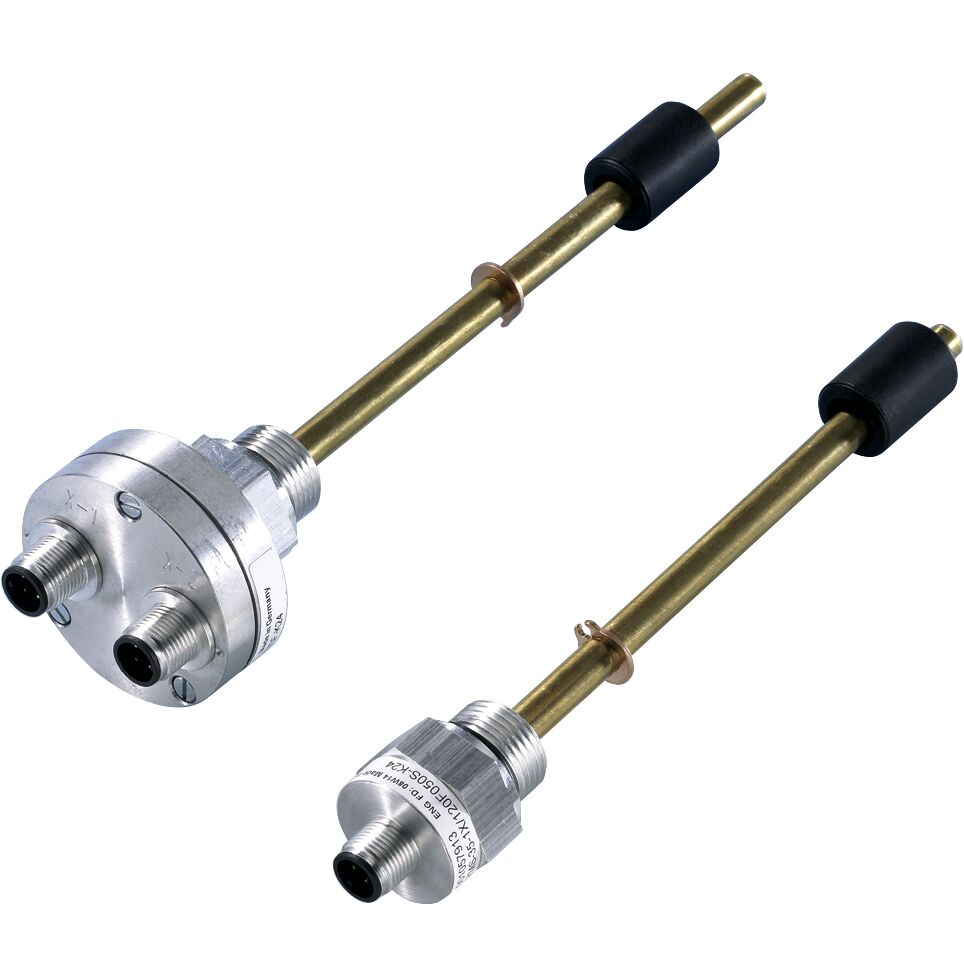

FLOAT SWITCH ABZMS-35-1X/150F100F-T70F-K24
R901478680
Udsolgt
Information
| Connection diagram | M20 x 1.5 |
| Electrical connection description | 2 x connector 4-pole, M12 x 1 |
| Electrical connector | Connector 4-pole, M12x1, A-coded |
| Hydraulic fluid | HLP;HFA-E;HFC;HFD-R;HFD-U;HETG;HEES;HEPG |
| Iteration | 6 |
| Long Description | Float switch combined with temperature contact / temperature sensorTwo switching contactsFloat switches are switching devices operated by a float moved by fluid.1st switching points prescribed at 150 mm2nd switching points prescribed at 100 mm |
| Max. pressure | 1 bar |
| Short Description | FLOAT SWITCH ABZMS-35-1X/150F100F-T70F-K24 |
| Supply voltage | 10 bis 50 V DC |
| Weight | 0.1 kg |
