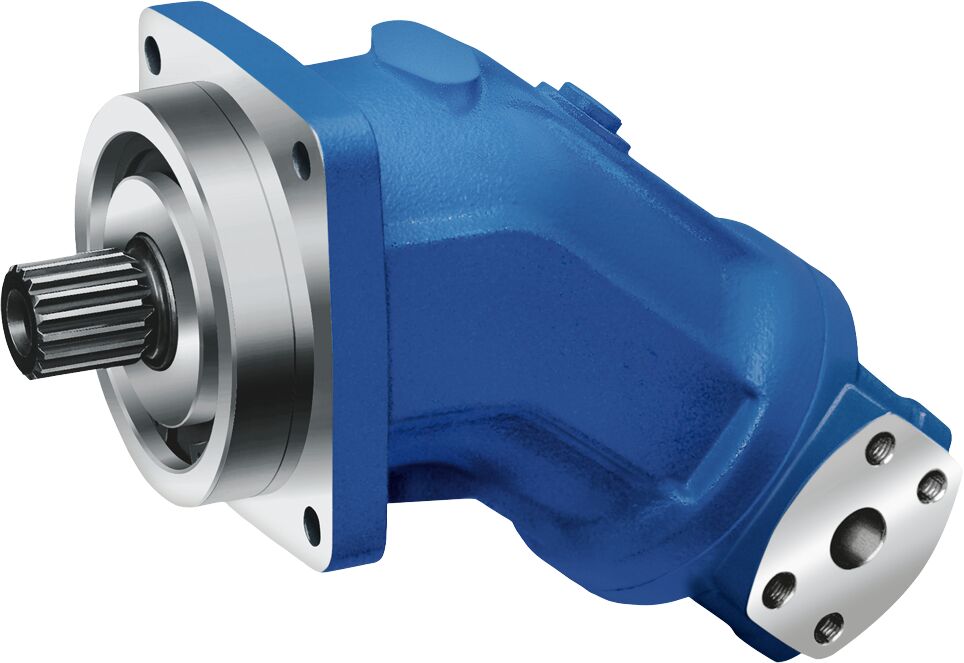

AXIAL-PISTON PUMP A2FO180/61R-VBB05 *GO2EU*
R902230052
Udsolgt
Information
| Classification society (external) | Standard (without acceptance) |
| Direction of rotation (#1) | clockwise |
| Drive shaft bearing | Standard bearing |
| Housing port, status | Air bleed port R plugged |
| Housing ports | Air bleed port R |
| Iteration | 6 |
| Long Description | A2FO is a displacement pump with axial tapered piston transmission in bent axis design for hydrostatic drives in the open circuit. The flow is proportional to the drive speed and the displacement.Large variety of available nominal sizes allows exact adjustment to the applicationHigh power densityRobust pump with long service lifeVery high total efficiency |
| Low temperature version | no |
| Mounting flange | 4-hole ISO 3019-2 |
| Paint/base coat | RAL 9005 deep black |
| Paint/top coat | without |
| Port plate | B - Standard |
| Product (axial piston unit) | A2FO |
| Product family | A2FO |
| Rotary group, hydraulic part | Standard |
| Sealing material (#2) | FKM |
| Series (#1) | 61 |
| Shaft end (#1) | B (cyl.shaft w.key.DIN6885) |
| Shaft seal | Standard WDR |
| Short Description | AXIAL-PISTON PUMP A2FO180/61R-VBB05 *GO2EU* |
| Size (displacement) | 180 cm³ |
| Test certificate | without |
| Test certificate language code | Without |
| Weight | 45 kg |
| Working ports | 05 (S rear;B(A)lat.SAE met) |
