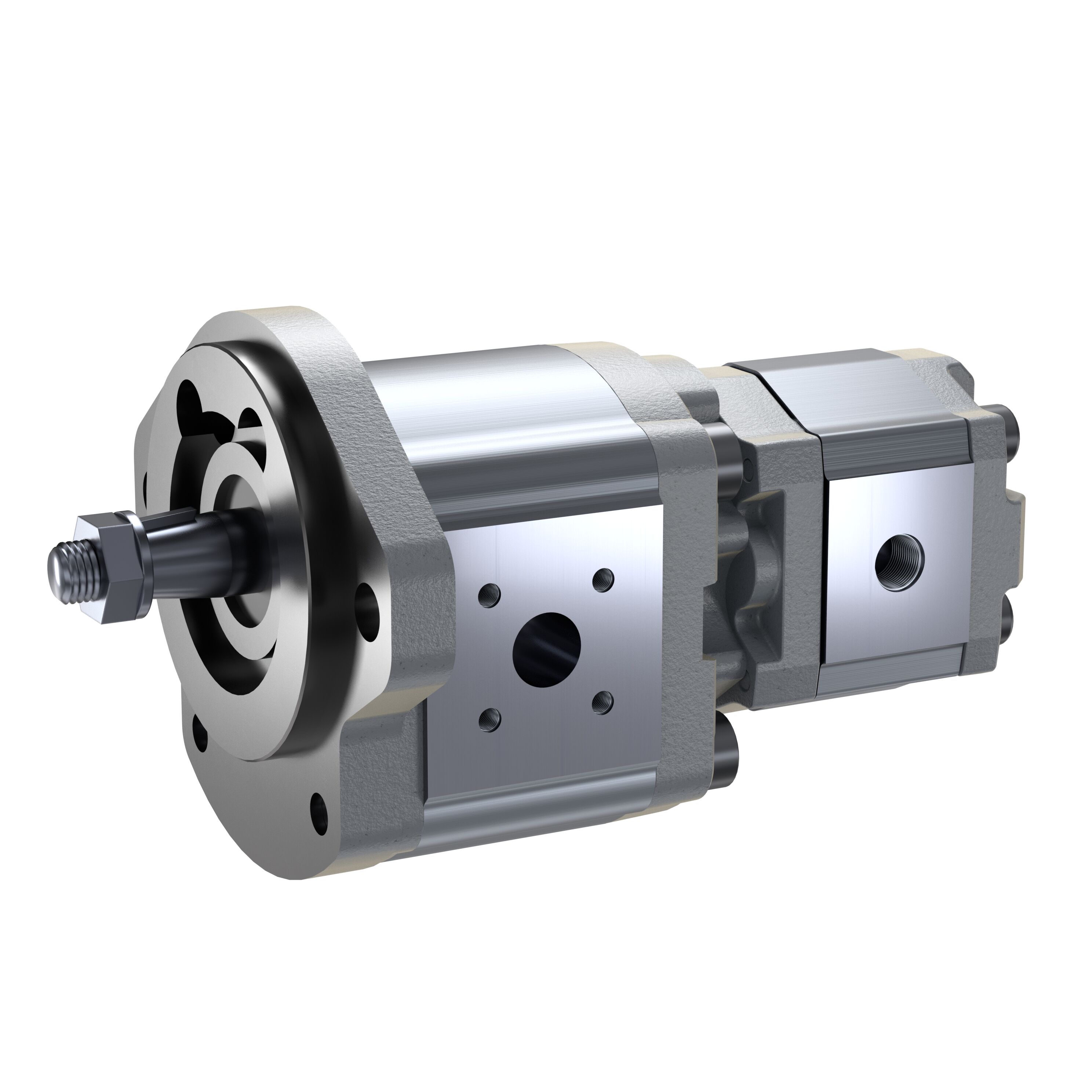

HYDRAULIC GEAR PUMP AZPFB-12-008/2.5RCB2002KB-S9997
R919000466
Udsolgt
Information
| Direction of rotation | clockwise rotation |
| Drive shaft | Conical 1:5 |
| External gear unit | External gear unit |
| External gear unit function | Pump |
| Front cover | Rectangular flange Ø 80 mm |
| Housing material | Aluminum |
| Iteration | 6 |
| Line connection | Square flange DIN 3901/3902 |
| Line connection PU2 | Metric thread to DIN 3852T1 |
| Long Description | The key task of external gear pumps is to convert mechanical energy (torque and rotational speed) into hydraulic energy (flow and pressure). To avoid unnecessarily high heat losses, units with high efficiencies are sought after. These are realized by means of pressure-dependent gap sealing and high-precision manufacturing technology.Consistent high quality based on large-volume productionDrive shafts according to ISO or SAE and customer specific solutionsLong service lifeSlide bearings for high loadsPort connections: flanged or threaded |
| Max. flow (#2) | 12.0 l/min |
| Max. flow PU2 | 3.8 l/min |
| Maximum intermittent pressure pump unit 1 | 280 bar |
| Maximum intermittent pressure pump unit 2 | 250 bar |
| Maximum rotational speed | 1500 rpm |
| Noise level | Standard noise level |
| Rear cover | Standard |
| Sealing material | NBR, WDR in FKM |
| Series | Model F (4 ... 28 cm³/rev) |
| Series PU2 | Model B (0.84 ... 10 cm³/rev) |
| Short Description | HYDRAULIC GEAR PUMP AZPFB-12-008/2.5RCB2002KB-S9997 |
| Size (geometric displacement) | 8 cm³/rev |
| Size (geometric displacement) PU2 | 2.5 cm³/rev |
| Special version | Deviations from catalogue standards, see drawing |
| Unit version | Bearing diameter Ø 18mm |
| Version | corrosion-resistant, pinned |
| Weight | 4.6 kg |
