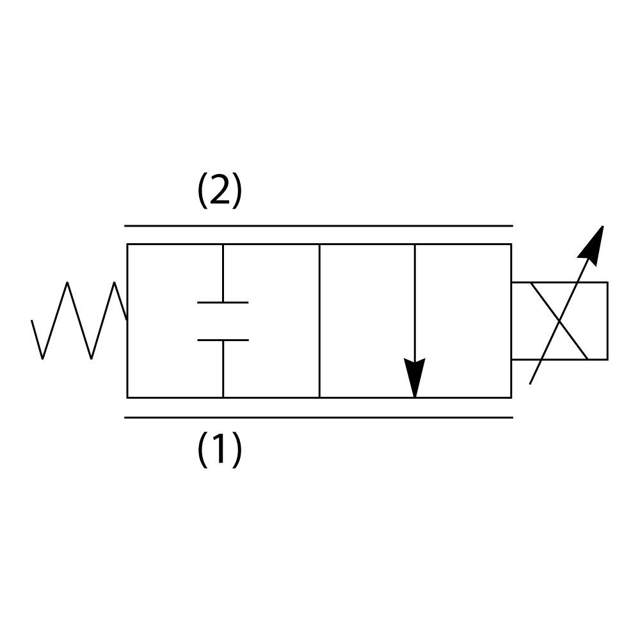

SOL PROP VALVE 2-WAY N C
DF161C40V
Udsolgt
Information
| Afdeling | Hydraulic Cartridge Systems Division |
| Aktiveringstype | Electrical |
| Aktiveringstype | Electrical |
| Betjeningstype | Solenoid operated |
| Body materiale | N/A |
| Bypassfunktionalitet | N/A |
| Bypassfunktionalitet | N/A |
| Driftstemperatur | -26 to +204 �C |
| Filters effektivitetsklassificering | ISO 4406 18/16/13, SAE Class 4 |
| Flowhastighed | 150 L/min |
| Flowhastighed | 40 GAL/MIN, 150 L/MIN |
| Flowhastighed - nøjagtighed | N/A |
| Flowretning | Side to Nose (2 - 1) |
| For væsketype | Mineral-based or synthetic hydraulic fluids |
| Forbindelsestype | N/A |
| Form størrelse | C16-2 |
| Frekvens | 100-400 Hz |
| Funktion | Proportional Flow Control/Regulator |
| Hysterese | 4% |
| Installationsmoment | 40 lb-ft |
| Konfiguration | Normally Closed |
| Konfiguration | Normally Closed |
| Lækagehastighed | 125 @ 3000 PSI (210 BAR) cm3/min |
| Maks. driftstemperatur | +400 �F |
| Maks. driftstryk | 210 bar |
| Maks. flowhastighed | 40.0 Gal/min |
| Maksimal kinematisk viskositet | 45-2000 SSU (6 to 420 cSt) |
| Maksimalt indløbstryktrin | 210 bar |
| Maksimalt regulerende flow | 500 PSI, 34.5 BAR |
| Mindste driftstemperatur | -15 �F |
| Mindste trykdifferens | N/A psi |
| Pakningsmateriale | Fluorocarbon |
| Pakningsmateriale | Fluorocarbon |
| partId (right) | 2436827 |
| Spolemøtriks tilspændingsmoment | 3 lb-ft |
| Spoletype | 1" DS Coil High Watt |
| Strøm | Max: 3.53 @ 12 VDC, 1.79 @ 24 VDC A |
| Strømforbrug | 42 W |
| Tilslutningsstørrelse | N/A |
| Trådmaskesigte medfølger | No |
| Variation af lukkepunkt | N/A |
| Variation af åbningspunkt | 20%-30% of Input Signal |
| Ventilmateriale | All parts steel. All operating parts hardened steel |
| Vægt | 0.34 kg |
