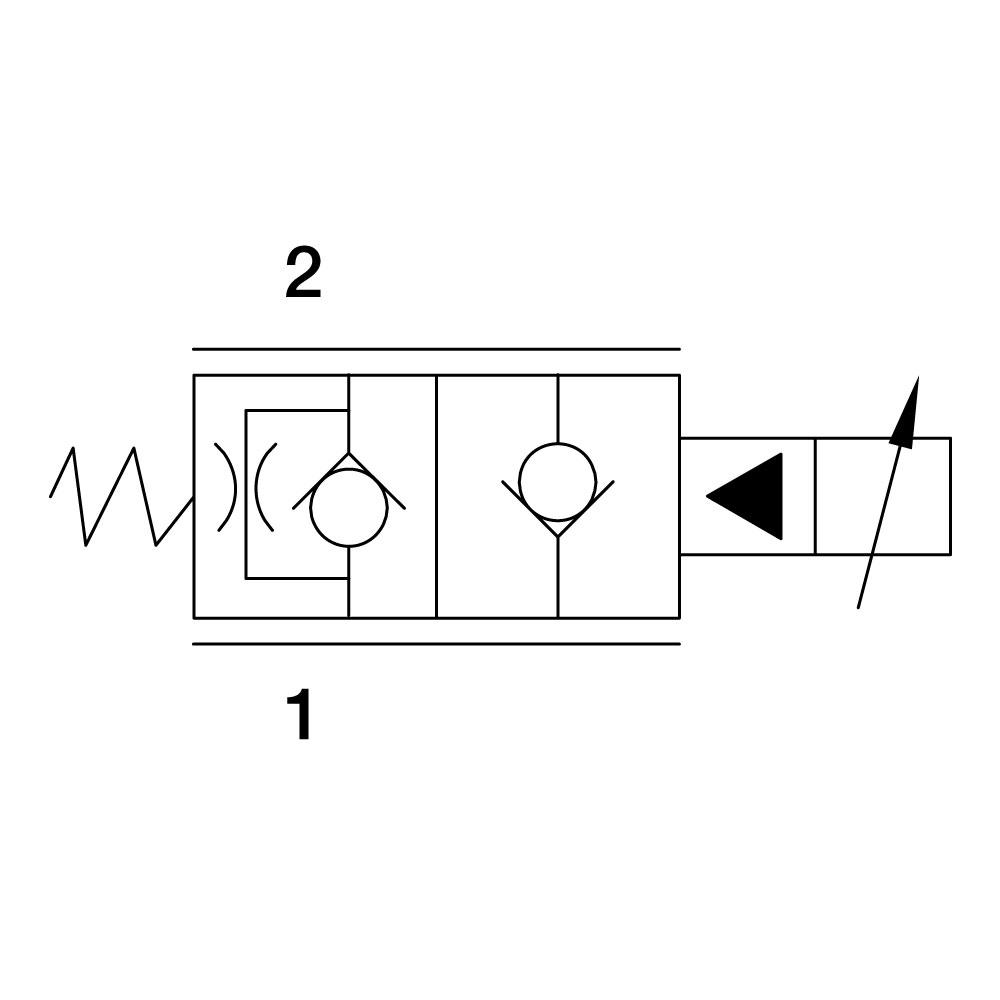

Proportional Poppet Valves
FAP101NN
Information
| Afdeling | Hydraulic Cartridge Systems Division |
| Aktiveringstype | Electrical |
| Body materiale | N/A |
| Bypassfunktionalitet | N/A |
| Driftstemperatur | -34 to +121 �C |
| Filters effektivitetsklassificering | ISO 4406 18/16/13, SAE Class 4 |
| Flowhastighed | 55 L/min |
| Flowretning | Side to Nose (2 - 1) |
| For væsketype | Mineral-based or synthetic hydraulic fluids |
| Form størrelse | C10-2 |
| Frekvens | 100-400 Hz |
| Funktion | Proportional Flow Control/Regulator |
| Hysterese | < 15% |
| Installationsmoment | 34 Nm |
| Konfiguration | Normally Open |
| Konfiguration | Normally Open |
| Lækagehastighed | 5 @ 3000 PSI (210 BAR) drops/min |
| Maks. driftstemperatur | +121 �C |
| Maks. driftstryk | 3000 psi |
| Maks. flowhastighed | 14.5 Gal/min |
| Maks. flowhastighed | 14.5 GAL/MIN, 55 L/MIN |
| Maksimal kinematisk viskositet | 45-2000 SSU (6 to 420 cSt) |
| Maksimalt indløbstryktrin | 210 bar |
| Mindste driftstemperatur | -30 �F |
| Mindste trykdifferens | 21 bar |
| Pakningsmateriale | Nitrile |
| Pakningsmateriale | Nitrile |
| partId (right) | 2395266 |
| Spolemøtriks tilspændingsmoment | 1.4 Nm |
| Spoletype | 5/8" Super Coil Low Watt (CAS) |
| Strømforbrug | 18 W |
| Variation af lukkepunkt | 60-65% of Input Signal |
| Variation af åbningspunkt | N/A |
| Ventilmateriale | All parts steel. All operating parts hardened steel |
| Vægt | 0.52 lb |
