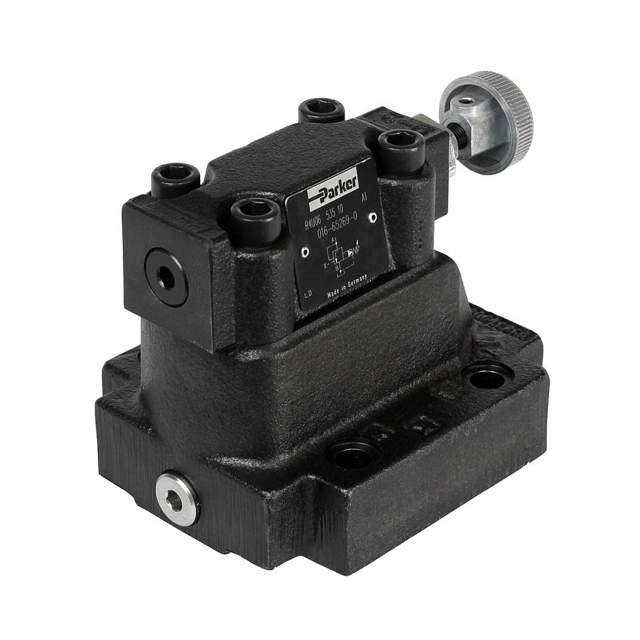

R4U06-5351011W31A110 PRESSURE RELIEF VALVE
R4U06-5351011W31A1
Udsolgt
Information
| Afdeling | Industrial Systems Division Europe |
| Afløbsmulighed | Drain line internal |
| Aktiveringstype | Manually |
| Betjeningstype | Pilot |
| Body materiale | Cast iron |
| Flowhastighed | 350 L/min |
| For væsketype | Hydraulic oil according to DIN 51524 |
| Frekvens | 50/60 Hz |
| Indgangsspænding | 230/240 VAC |
| Maks. driftstemperatur | 60 °C |
| Maks. driftstryk | Port A, X 350; port B, Y depressurized |
| Maks. driftstryk | Port A, X 350 BAR; port B, Y depressurized |
| Maks. flowhastighed | N/A |
| Maks. trykindstilling | 350 bar |
| Mindste driftstemperatur | -20 °C |
| Monteringstype | Subplate mounting |
| Omkoblingsvalg | Vent function: solenoid activated, unpressurized circulation |
| Pakningsmateriale | NBR |
| Pakningsmateriale | NBR |
| Porttilslutning | NG25 / CETOP 08 |
| Produktserie | Pressure valve |
| Trykjusteringskontroltype | Hand knob |
| Trykreguleringsområde | 350 bar |
| Vægt | 6.2 kg |
Filer
| Downloads | CATALOGUE - Unloading Valve Series R4U.pdf |
| Downloads | Unloading Pressure Control Valve Catalog - R4U Series (North America).pdf |
