SENSE CHECK, SAE 2
CVH021
Udsolgt
Information
| Afdeling | Hydraulic Cartridge Systems Division |
| Aktiveringstype | Pressure Sensing |
| Betjeningstype | Automatic |
| Body materiale | N/A |
| Driftstemperatur | -26 to +204 �C |
| Filters effektivitetsklassificering | ISO 4406 18/16/13, SAE Class 4 |
| Flowhastighed | 3.8 L/min |
| Flowhastighed | 1 GAL/MIN, 3.8 L/MIN |

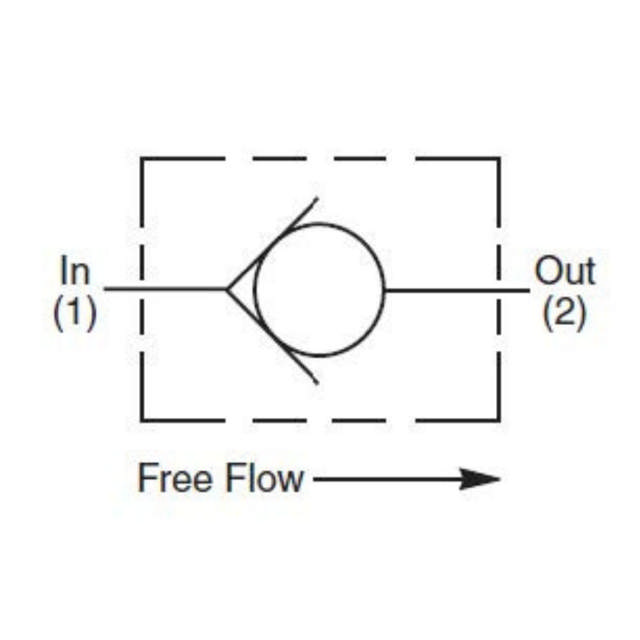

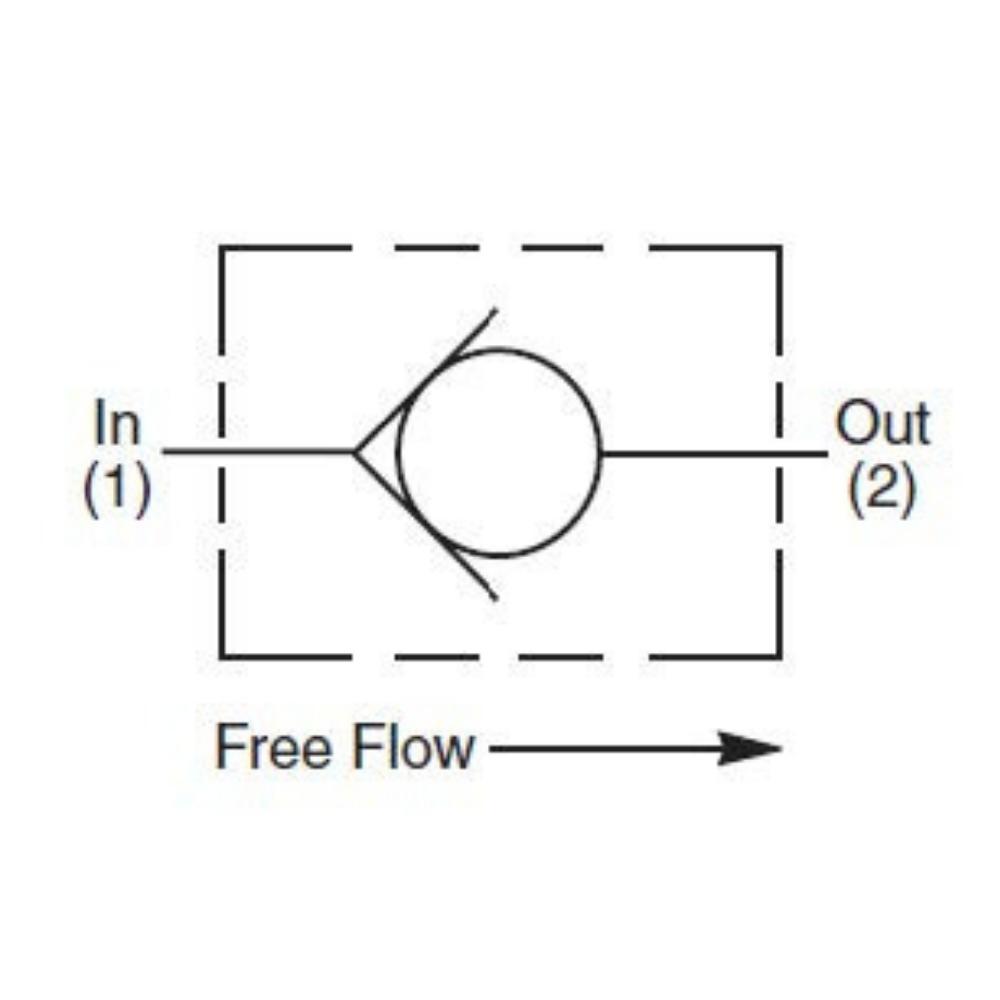

| Flowretning | 2-1 checked, 1-2 free flow |
| For væsketype | Mineral-based or synthetic hydraulic fluids |
| Forbindelsestype | N/A |
| Form størrelse | N/A |
| Funktion | Sense Check |
| Konfiguration | Insert |
| Lækagehastighed | N/A drops/min |
| Maks. driftstemperatur | +400 �F |
| Maks. driftstryk | 350 bar |
| Maks. flowhastighed | 1 Gal/min |
| Maksimal kinematisk viskositet | 45-2000 SSU (6 to 420 cSt) |
| Maksimalt indløbstryktrin | 5000 PSI, 350 BAR |
| Maksimalt indløbstryktrin | 5000 psi |
| Mindste driftstemperatur | -15 �F |
| Monteringstype | Inside manifolds |
| Pakningsmateriale | Fluorocarbon |
| Pakningsmateriale | Fluorocarbon |
| partId (right) | 2825652 |
| Sprængningstryk | 0 psi |
| Sprængningstryk | 0 PSI, 0 BAR |
| Tilslutningsstørrelse | N/A |
| Ventilmateriale | All parts steel. All operating parts hardened steel |
| Vægt | 0.04 lb |
