SCREW-IN CARTRIDGE VALVE 04591803583500M-VBST-20A-4:1-35-350B-OR...
R930080625
Udsolgt
Information
| Adjustable pressure range | 140-350 bar |
| Adjustment direction | Clockwise |
| Adjustment options | Leakproof hexagon socket screw |
| Cavity | CA-20A-3C |
| Direct - Pilot | External pilot operated |
| Hydraulic fluid | HL;HLP |
| Iteration | 5 |
| Long Description | Maximum flow 320 l/min (85 gpm)Cavity CA-20A-3CScrew-in cartridge valveMaximum operating pressure 350 bar (5000 psi) |
| Max. flow | 320 l/min |
| Max. pressure | 350 bar |
| Nominal flow | 320 l/min |
| Normal position | Normally closed |
| Pilot ratio | 4.01 |
| Ports number | 3 |
| Pressure pre-setting | With pressure pre-setting |
| Pressure setting | 350 bar |

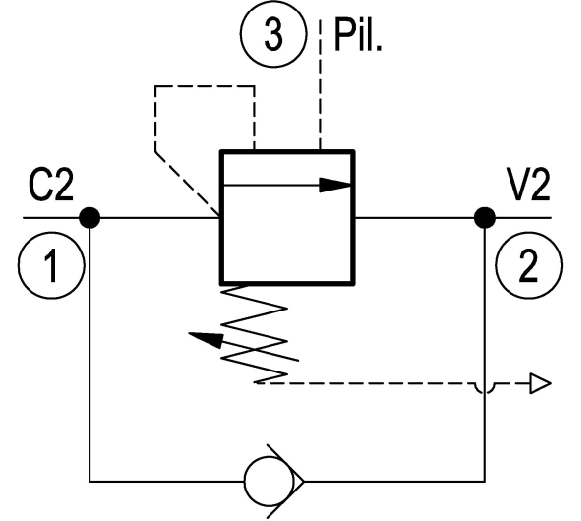

| Product family classification | Counterbalance, vented guided poppet type |
| Product family type | VBST |
| Sealing material | NBR |
| Short Description | SCREW-IN CARTRIDGE VALVE 04591803583500M-VBST-20A-4:1-35-350B-OR... |
| Spool Poppet | Poppet type |
| Type of connection | Screw-in cartridge valve |
| Weight | 0.855 kg |
