DIRECTIONAL-CONTROL VALVE L7213116BI00000-KS.VS151-3/8G-DZ-P1C1N-...
R933001842
Udsolgt
Information
| Coil | C48 |
| Coil integrated | To be ordered separately |
| Direct - Pilot | Direct acting |
| Drain type | Internal drain |
| Hydraulic fluid | HL;HLP |
| Iteration | 5 |
| Long Description | Maximum flow 60 l/min (16 gpm)Ports: G 3/8Maximum operating pressure 310 bar (4495 psi)Size 6 |
| Max. flow | 60 l/min |
| Max. pressure | 310 bar |
| Nominal flow | 60 l/min |
| Ports | G 3/8 |
| Ports number | 6 |
| Positions | 2 |

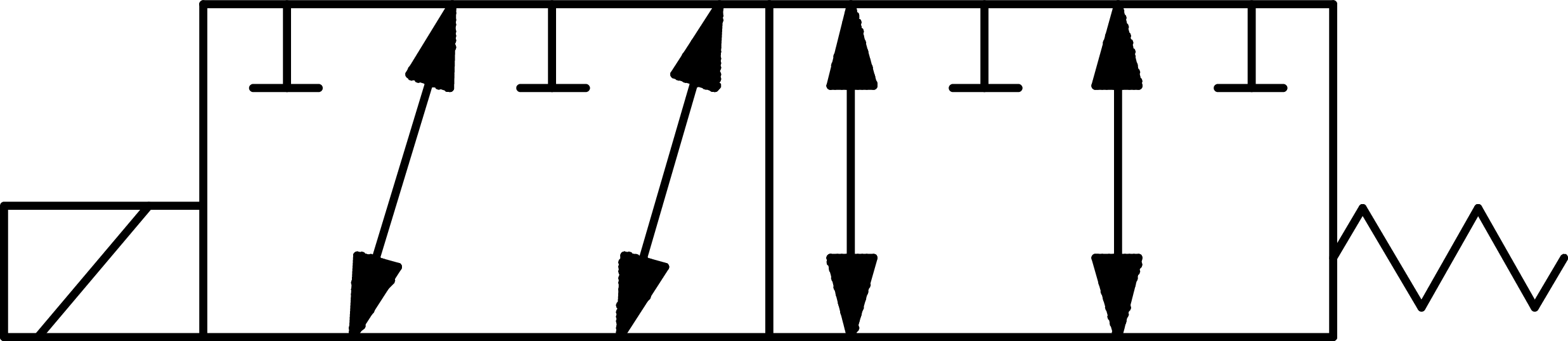

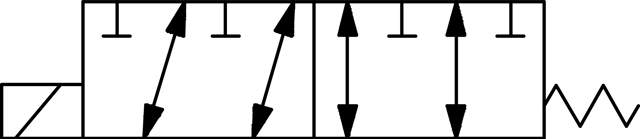

| Product family classification | 6/2 ways/positions flow diverters |
| Product family type | VS151 |
| Sealing material | NBR |
| Short Description | DIRECTIONAL-CONTROL VALVE L7213116BI00000-KS.VS151-3/8G-DZ-P1C1N-... |
| Spool Poppet | Spool type |
| Type of actuation | Solenoid-actuated on/off |
| Type of connection | Threaded connection |
| Weight | 2.085 kg |
