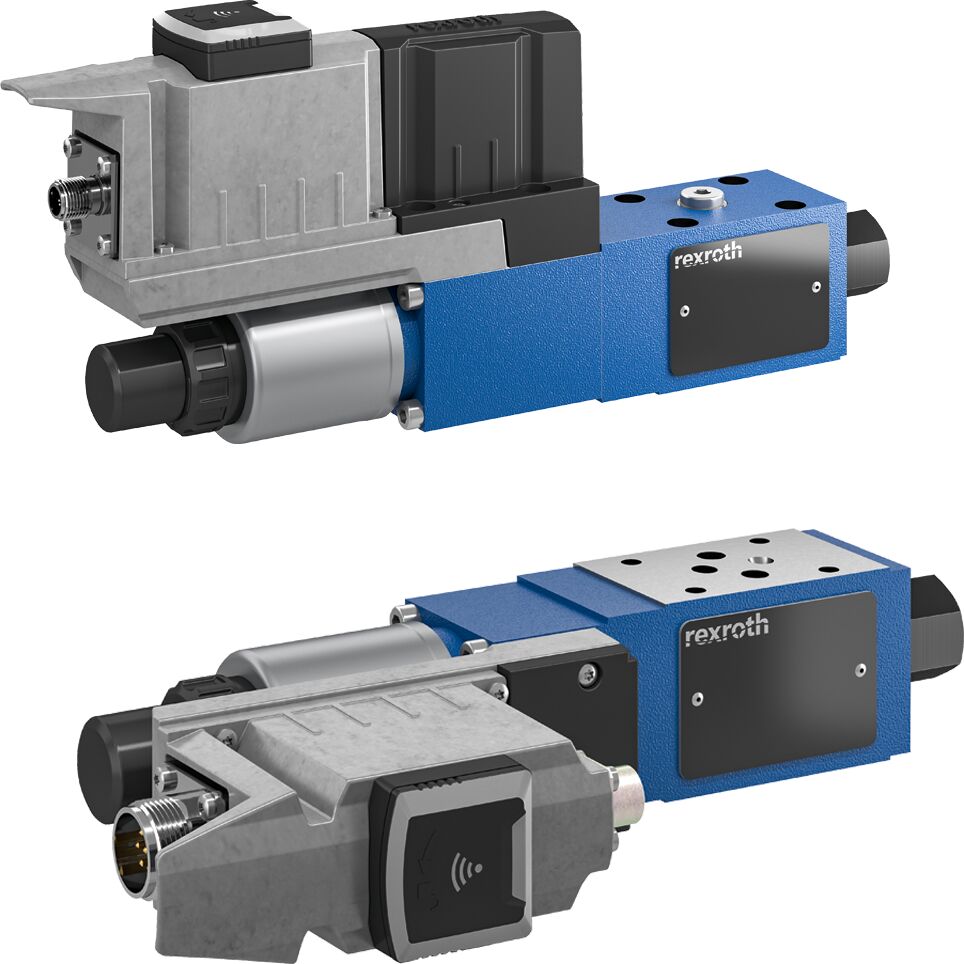

PRESSURE REDUCING VALVE 3DREA6-2X/100G24K31F1V
R901566424
Udsolgt
Information
| Conformity | CE |
| Conformity description |
CE – according to EMC Directive 2014/30/EU RoHS directive 2011/65/EU |
| Connection diagram | ISO 4401-03-02-0-05 |
| Connectivity | Analog, command value 4 … 20 mA |
| Electrical connection description | Connector 7-pole (6 + PE) according to EN 175201-804 |
| Electrical connector | Connector 7-pole (6 + PE) |
| Hydraulic fluid | HL;HLP;HLPD;HVLP;HVLPD;HETG;HEES;HEPG;HFDU;HFDR |
| Iteration | 6 |
| Long Description | Industrial hydraulic valve in a high performance range. Reliable reduction of the pressure to the command value signal. |
| Max. flow (#3) | 60 l/min |
| Max. pressure | 350 bar |
| Number of ports | 4 |
| Number of switching positions | 2 |
| Short Description | PRESSURE REDUCING VALVE 3DREA6-2X/100G24K31F1V |
| Size | 6 |
| Spool symbol | P → A |
| Supply voltage | 24 VDC |
| Type of actuation (#1) | Electrical with integrated electronics |
| Type of connection | Subplate mounting |
| Weight | 5 kg |
