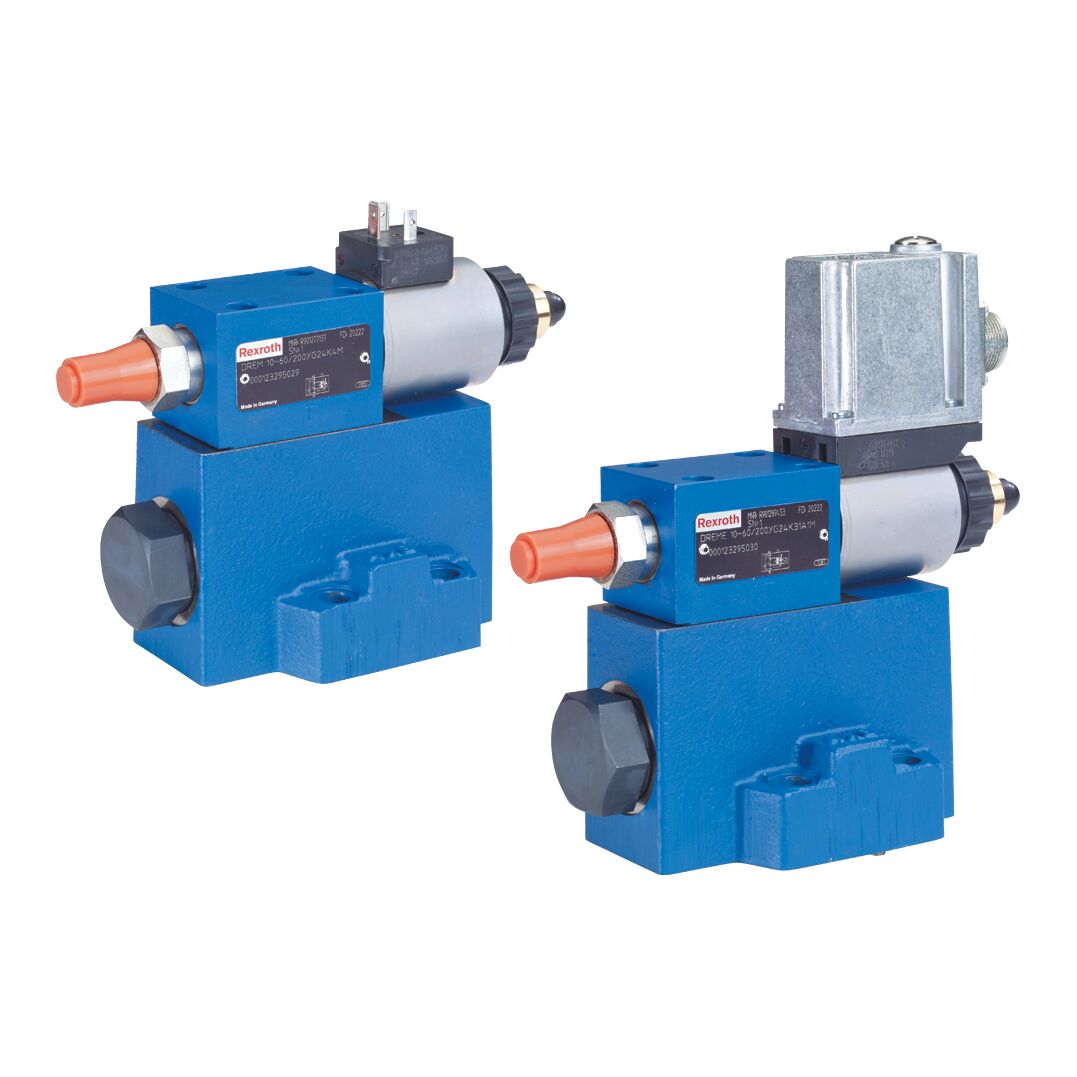

PRESSURE REDUCING VALVE DREE10-6X/50YMG24K31A1M
R901336135
Udsolgt
Information
| Conformity | CE |
| Conformity description | CE – according to EMC Directive 2014/30/EU |
| Connection diagram | ISO 5781 |
| Connectivity | Analog, command value 0 … 10 V |
| Electrical connection description | Connector 7-pole (6 + PE) according to EN 175201-804 |
| Electrical connector | Connector 7-pole (6 + PE) |
| Hydraulic fluid | HL;HLP;HLPD;HVLP;HVLPD;HFC |
| Iteration | 7 |
| Long Description | Industrial hydraulic valve in a high performance range. Reliable reduction of the pressure to the command value signal. |
| Max. flow | 300 l/min |
| Max. pressure | 315 bar |
| Number of ports | 3 |
| Number of switching positions | 2 |
| Short Description | PRESSURE REDUCING VALVE DREE10-6X/50YMG24K31A1M |
| Size | 10 |
| Spool symbol | B → A |
| Supply voltage | 24 VDC |
| Type of actuation | Electrical with integrated electronics |
| Type of connection | Subplate mounting |
| Weight | 4.84 kg |
