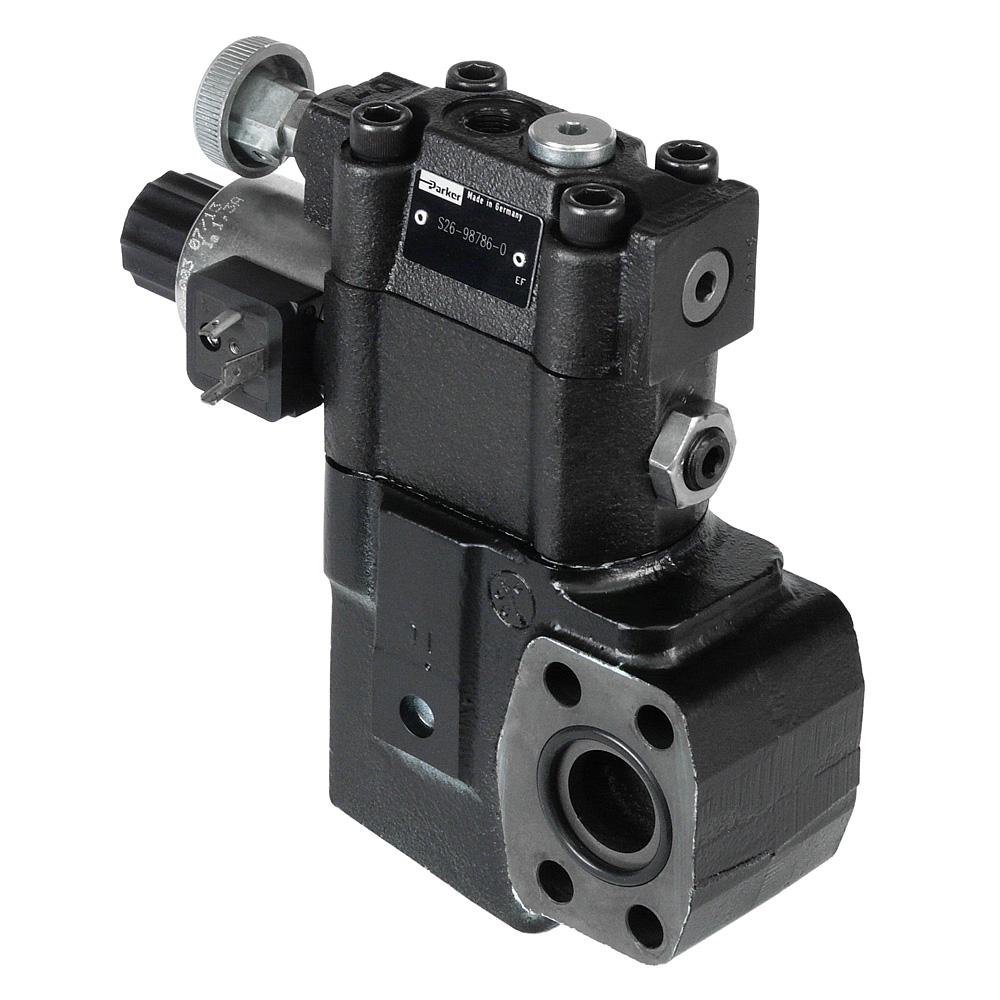

OBSOLETE: Pilot Operated Pressure Reducing Valves, SAE Flange - Series R5R / R5R*P2
R5R08-58516P2G0RA1
Udsolgt
Information
| Afdeling | Industrial Systems Division Europe |
| Afløbsmulighed | External drain from Y1 port |
| Aktiveringstype | Proportional |
| Aktiveringstype | Solenoid |
| Betjeningstype | Pilot |
| Body materiale | Cast iron |
| Body type | 2-port, X1, Y1 = G 1/4 |
| Flangestørrelse | SAE61 |
| Flowhastighed | 300 L/min |
| Frekvens | N/A |
| Maks. driftstemperatur | 60 °C |
| Maks. driftstryk | 350 bar |
| Maks. flowhastighed | N/A |
| Maks. trykindstilling | 350 bar |
| Mindste driftstemperatur | -20 °C |
| Monteringstype | Flanged according SAE61 |
| Omkoblingsvalg | Omit |
| Pakningsmateriale | NBR |
| Pakningsmateriale | NBR |
| Porttilslutning | 1 |
| Produktserie | Pressure valve |
| Signalindgang | 12 VDC |
| Trykjusteringskontroltype | Hand knob |
| Trykreguleringsområde | 350 BAR |
| Vægt | 6.4 kg |
Filer
| Downloads | Pilot-Operated Pressure Reducing Valve Catalog - R5R Series (North America).pdf |
| Downloads | Pilot Operated Proportional Pressure Reducing Valve Catalog - R5R P2 Series (North America).pdf |
