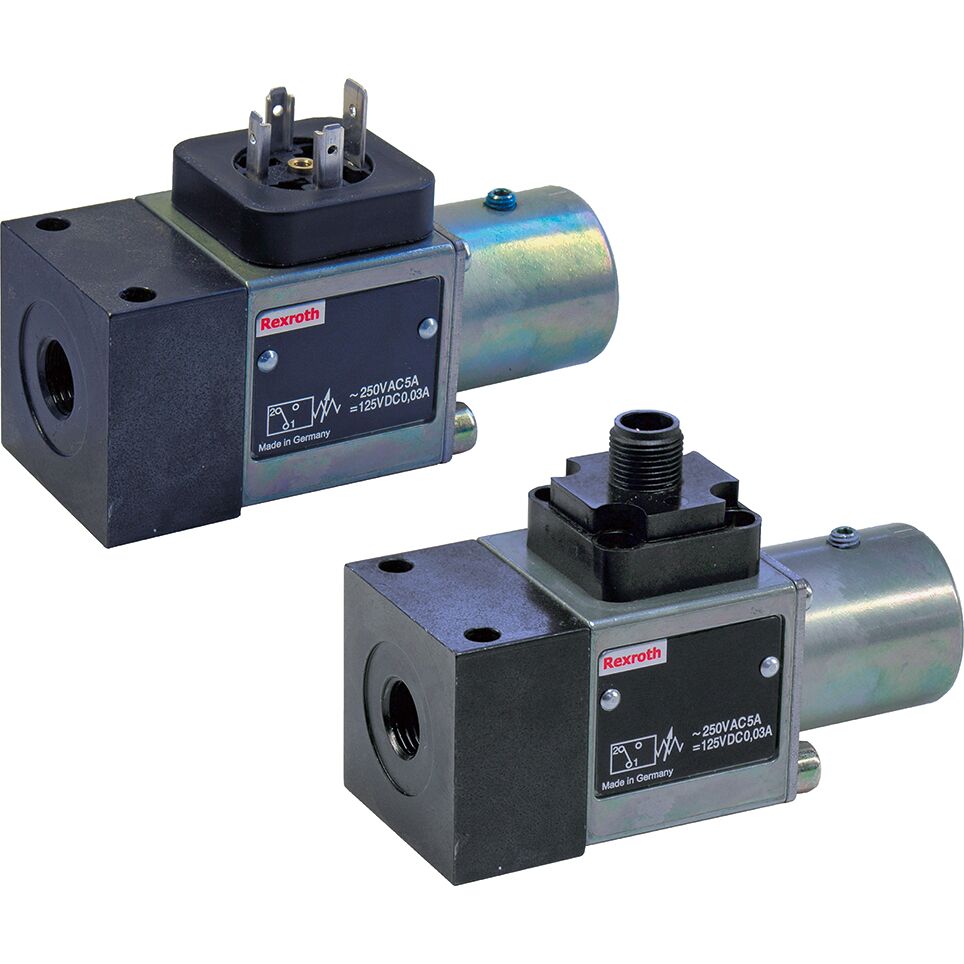

PRESSURE SWITCH HED 8 OA-2X/630K35A
R901188553
Udsolgt
Information
| Conformity | CCC;UL;RoHS |
| Conformity description | CE – according to Low-Voltage Directive 2014/35/EU |
| Electrical connection description | Connector, 4-pole, M12 x 1, coding A according to EN 61076-2-101 |
| Electrical connector | Connector 4-pole, M12x1, A-coded |
| Hydraulic fluid | HL;HLP;HLPD;HVLP;HVLPD |
| Iteration | 9 |
| Long Description | Potential-free switching of currents from 1 mA to 2.0 A. Small hysteresis, depending on the set switching point. High repetition accuracy < 1% of the set pressurePiston type pressure switchMicro switch with NC contact/NO contact functionPipeline installationWithout mating connector; connector IEC 61076-2-101, M12x1, A codingWith NBR seals |
| Max. pressure | 630 bar |
| Short Description | PRESSURE SWITCH HED 8 OA-2X/630K35A |
| Supply voltage | 12 bis 48 V AC/DC |
| Type of connection | Pipeline |
| Weight | 0.74 kg |
