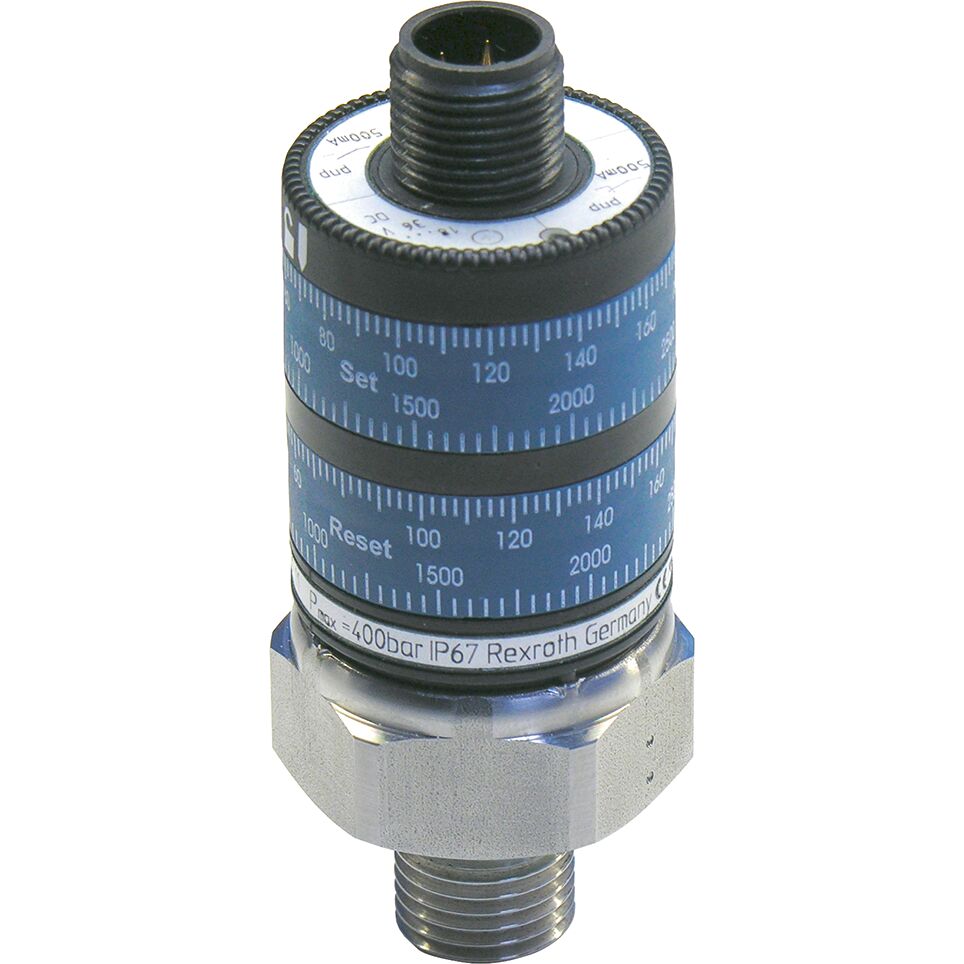

PRESSURE SWITCH HEDE 11 A1-1X/400/K41G24/2/V
432067
På lager
Information
| Conformity | CE;UL;UKCA;RoHS |
| Conformity description |
CE – electro-magnetic compatibility 2014/30/EU RoHS Directive 2011/65/EU |
| Electrical connection description | Connector, 4-pole, M12 x 1, coding A according to EN 61076-2-101 |
| Electrical connector | Connector 4-pole, M12x1, A-coded |
| Hydraulic fluid | HL;HLP;HFC |
| Iteration | 9 |
| Long Description | Easy switching point adjustment via 2 adjustment ringsThin film measuring cell2 antivalent switching outputsEasy switching point adjustment via 2 adjustment rings |
| Max. pressure | 400 bar |
| Short Description | PRESSURE SWITCH HEDE 11 A1-1X/400/K41G24/2/V |
| Supply voltage | 24 VDC |
| Weight | 0.13241 kg |
