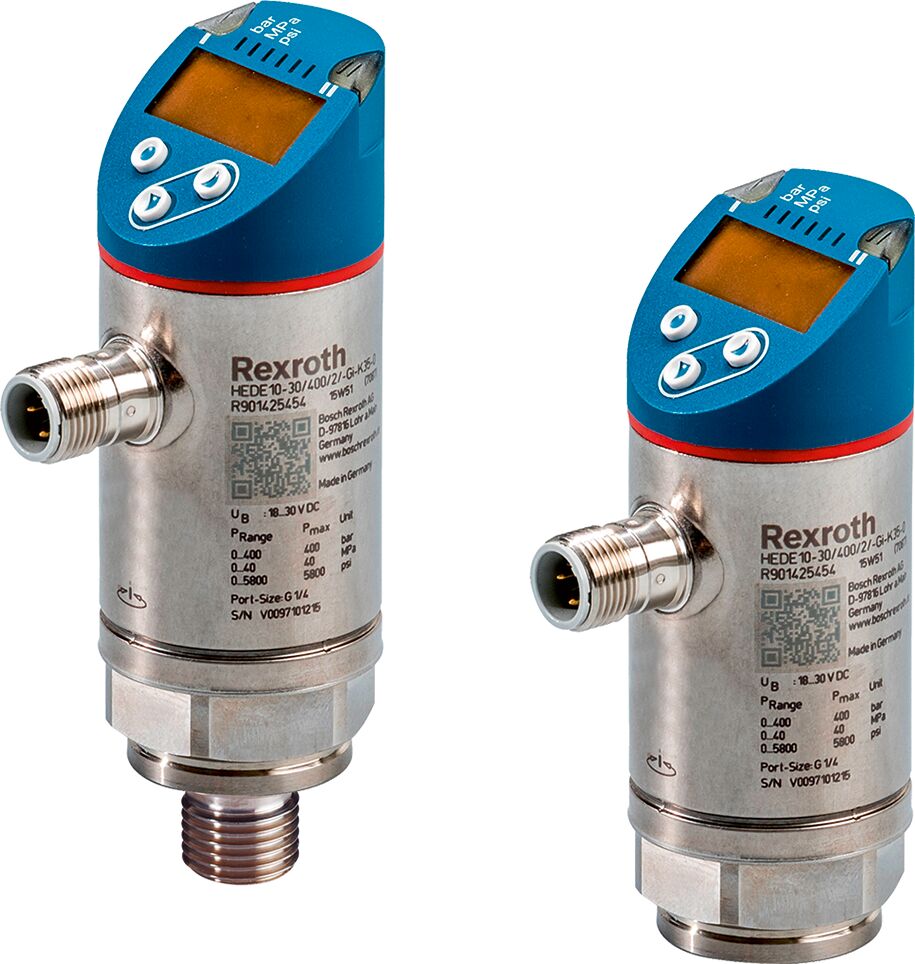

PRESSURE SWITCH HEDE10-3X/250/2/-GI-K35-0
432066
På lager
Information
| Conformity | CE;UL;UKCA;EAC;RoHS |
| Conformity description |
CE – electro-magnetic compatibility 2014/30/EU RoHS Directive 2011/65/EU |
| Electrical connection description | Connector, 4-pole, M12 x 1, coding A according to EN 61076-2-101 |
| Electrical connector | Connector 4-pole, M12x1, A-coded |
| Hydraulic fluid | HL;HLP;HFC;HETG;HEES;HFD |
| Iteration | 6 |
| Long Description | Display for pressure values and parameters. Additional transmission of pressure and diagnosis values via IO-Link. All components in contact with the media are made of stainless steel. Excellent overload and bursting behavior.Configuration via IO-Link or button at deviceThin film measuring cell2 switching outputsThrottle element in the pressure channelConnector 4-pole, M12x1, A-coded |
| Max. pressure | 250 bar |
| Short Description | PRESSURE SWITCH HEDE10-3X/250/2/-GI-K35-0 |
| Supply voltage | 24 VDC |
| Weight | 0.24 kg |
